Third Row Seat-Back Recline Cable Replacement: Seat-Back

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to tear or damage the seat covers.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the third row seat (see THIRD ROW SEAT REMOVAL/INSTALLATION ).
Remove the third row seat-back cover (see THIRD ROW SEAT-BACK COVER REPLACEMENT ).
Remove the third row seat cushion cover (see THIRD ROW SEAT CUSHION COVER REPLACEMENT ).
Remove the seat-back link unit (A).
1. Detach the cable clip (B), then remove the bolts.
2. Disconnect the lock release cables (C) and recline cable (D) from the seat-back link unit.
3. Release the lock release strap (E) out through the seat-back frame.
Left seat-back

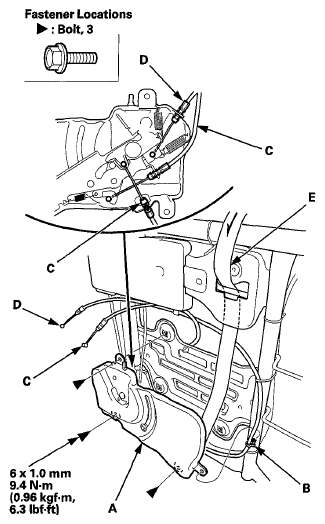

Fig 1: Seat-Back Link Unit, Cable Clip And Bolts (Left Seat-Back) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right seat-back

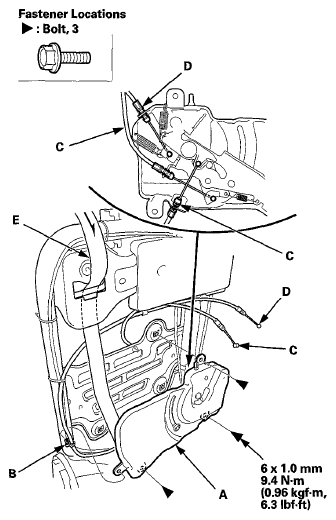

Fig 2: Seat-Back Link Unit, Cable Clip And Bolts (Right Seat-Back) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, release the lock release strap (A) by releasing the push nut (B) and the washer (C) from the seat-back link unit.
NOTE: Replace the push nut you removed with a new one.

Fig 3: Identifying Lock Release Strap, Push Nut And Washer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the cable clips (A), and remove the screw, then remove the seat-back lever cover (B).

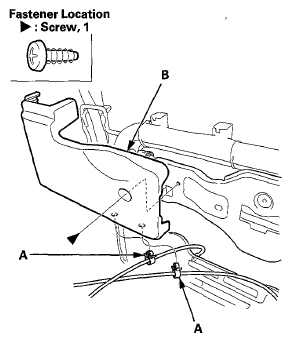

Fig 4: Identifying Seat-Back Lever Cover And Screw
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, release the lock release strap (A) from the seat-back lever (B).

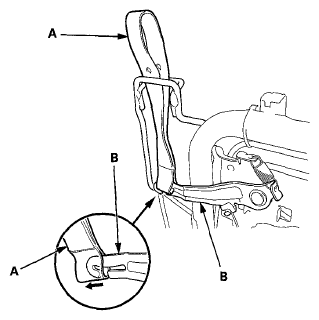

Fig 5: Releasing Lock Release Strap From Seat-Back Lever
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the lock release cables (A) and the recline cable (B).
1. Disconnect the lock release cables and the recline cable from the seat-back frame.
2. Release the wire ties (C) and detach the cable clips (D).
Left seat-back

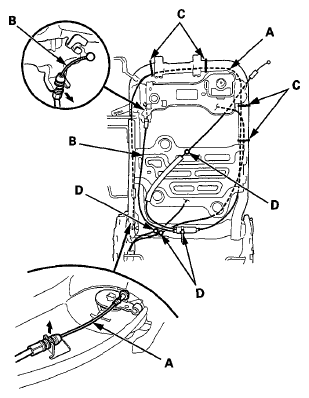

Fig 6: Removing Lock Release Cables And Recline Cable (Left Seat-Back)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right seat-back

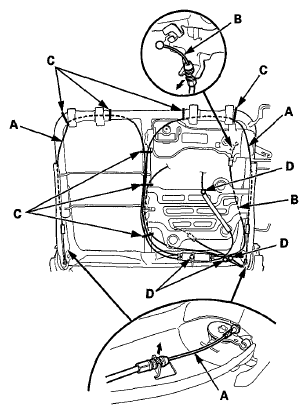

Fig 7: Removing Lock Release Cables And Recline Cable (Right Seat-Back)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cables in the reverse order of removal, and note these items:
- Make sure each cable is connected securely.
- Make sure the third row seat latches and unlatches properly.
