Third Row Seat Access Cable Replacement: Seat-Back

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to tear or damage the seat covers.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Separate the seat-back (see FRONT SEAT CUSHION COVER REPLACEMENT ).
Remove the walk-out cable cover (A).
1. Remove the screw.
2. Release the hooks (B, C).

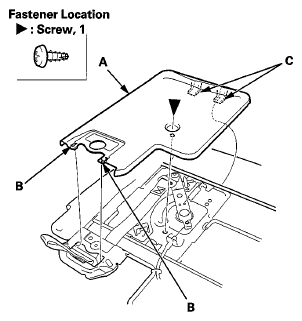

  Fig 1: Identifying Walk-Out Cable Cover And Hooks
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the walk-out cable (A).
1. Detach the clip and release the wire tie (B).
2. Disconnect the walk-out cable from the seat-back frame.

  Fig 2: Disconnecting Walk-Out Cable From Seat-Back Frame
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the walk-out cable in the reverse order of removal.
