Sliding Door Lower Roller Assembly Removal/Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the door, the body or the related parts.

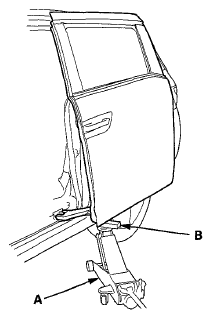

Pad a floor jack (A) with a rubber pad (B), then use the jack to support the door.

Fig 1: Supporting Door Using Floor Jack
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the lower roller plate (see step 4 ).
Remove the lower roller assembly (A).
1. Remove the bolts with a TORX T40 bit.
2. Loosen the locknuts (B) and the adjusting nuts (C), then remove the cables (D).

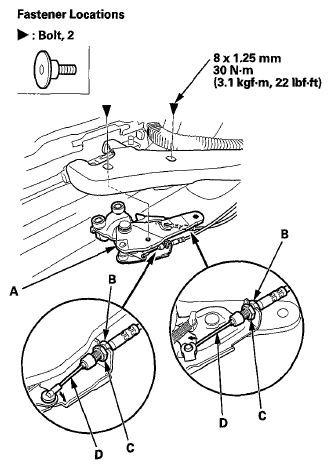

Fig 2: Lower Roller Assembly, Lock And Adjusting Nuts And Cables With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cables on the new lower roller assembly.
Do the sliding door cable adjustment on the following cables:
- Lower roller latch cable (see LOWER ROLLER LATCH CABLE )
- Lower roller stop cable (see LOWER ROLLER STOP CABLE )
Install the lower roller assembly in the reverse order of removal, and note these items:
- Make sure the cable is connected securely.
- Make sure the sliding door can be kept open.
- Make sure the sliding door closes. When operating the door outer handle or the inner handle while the door is fully opened, the lower roller latch cable is pulled by the remote control to unlatch the lower roller latch.
