Front Fog Light Trim Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the bumper.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
The left side is shown; the right side is similar.

Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).

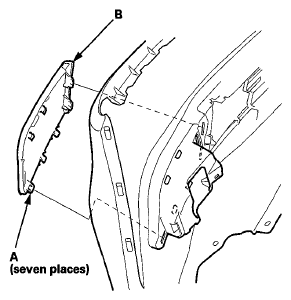

Release the hooks (A) (seven places), then remove the front fog light trim (B).

Fig 1: Identifying Front Fog Light Trim And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and push the hooks into place securely.
