Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Remove the bolt (A), and release the tabs (B), then remove the bottom cover (C) from the under-hood fuse/relay box (D).

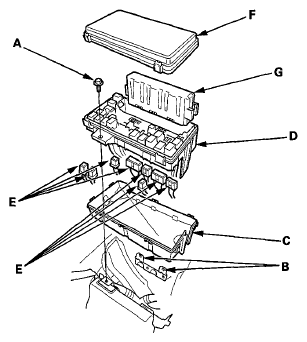

Fig 1: Identifying Under-Hood Fuse/Relay Box Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connectors (E) from the under-hood fuse/relay box.
Open the cover (F), then remove the relay control module (G) from the under-hood fuse/relay box.
Carefully remove the relays.
NOTE: Do not use pliers. Pliers will damage the relays, which could cause the engine to stall or not start or cause other functions to fail.
