Hood Release Handle Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to kink the hood opener cable.
  1. Remove the driver's kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
  2. Remove the bolts, then remove the hood release handle (A).

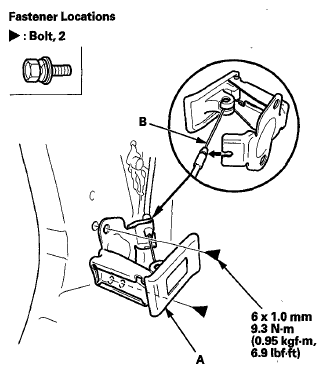

    Fig 1: Identifying Hood Release Handle Replacement Components With Torque Specifications
    G06968033Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the hood opener cable (B).
  4. Install the hood release handle in the reverse order of removal, and note these items:
    • Make sure the cable is connected properly.
    • Make sure the hood opens properly.
