Driver's Seat Position Sensor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

The driver's seat position sensor (Q) is under the driver's seat on the left side. When the driver's seat is moved to the most forward position, the deployment of the driver's airbag is moderated to decrease its force of impact during a front-end collision.

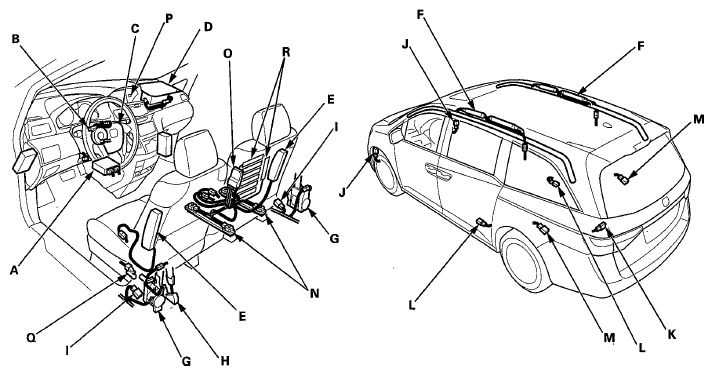

Fig 1: Identifying SRS Components
G06971423Courtesy of AMERICAN HONDA MOTOR CO., INC.
