Side Impact Sensor (Third) Replacement: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the side impact sensor (third) (A) with the new TORX bolt (B) using a TORX T30 bit, and tighten the TORX bolt to the specified torque.
    NOTE: For the right side impact sensor (third), install the TORX bolt through the gap of the rear HVAC unit (C).

    Left side

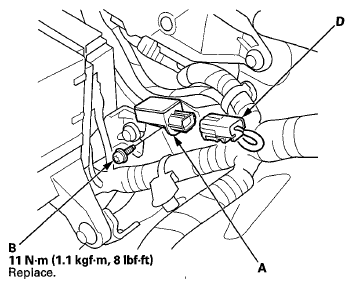

    Fig 1: Side Impact Sensor (Third) With 4P Connector And Torx Bolt (Left Side) With Torque Specifications
    G06971700Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Right side

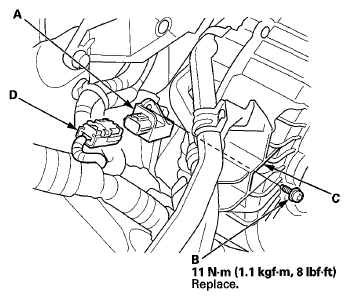

    Fig 2: Side Impact Sensor (Third) With 4P Connector And Torx Bolt (Right Side) With Torque Specifications
    G06971701Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the side impact sensor (third) 4P connector (D) on the left or right side wire harness.
  3. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  4. Clear any DTCs with the HDS (see HOW TO CLEAR DTCS  ).
  5. Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
  6. Install the rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
