Side Impact Sensor (First) Replacement: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the side impact sensor (first) (A) with the new TORX bolt (B) using a TORX T30 bit, and tighten the TORX bolt to the specified torque.

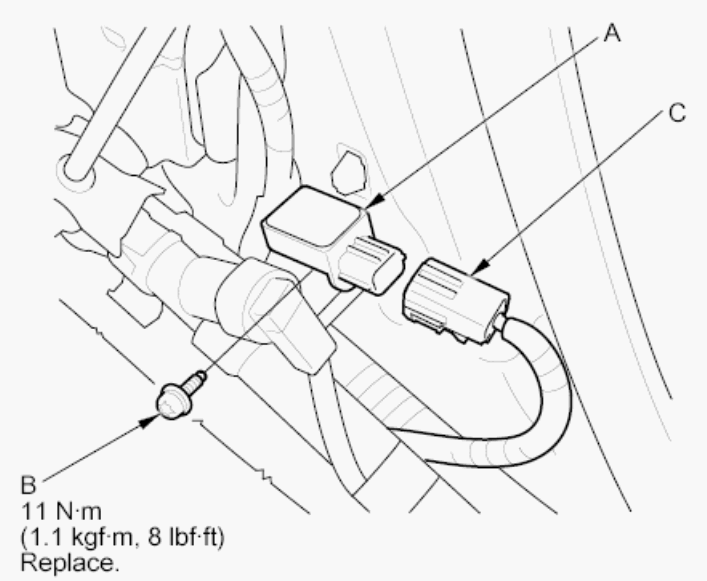

    Fig 1: Identifying Side Impact Sensor (First) 4P Connector And Torx Bolt
    G00525962Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the side impact sensor (first) 4P connector (C) on the left or right side wire harness.
  3. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  4. Clear any DTCs with the HDS (see HOW TO CLEAR DTCS  ).
  5. Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
  6. Install the B-pillar lower trim (see B-PILLAR UPPER/LOWER TRIM ).
