SRS Unit Replacement: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to ON (II).
  2. Move the driver's and front passenger's seats all way to the rear position.
  3. Turn the ignition switch to LOCK (0).
  4. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before starting work.
  5. Remove the driver's and passenger's heater panel (see step 1 on CENTER LOWER CONSOLE REMOVAL/INSTALLATION ).
  6. With cool box: Pull out the cool box outlet hose (A).

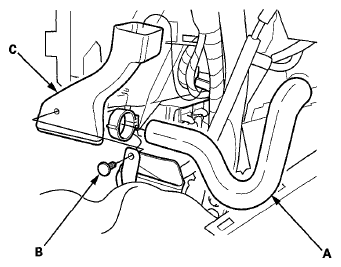

    Fig 1: Identifying Cool Box Outlet Hose, Clip And Left Heater Duct
    G06971688Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Detach the clip (B) from the left heater duct (C), then remove the heater duct.
  8. Disconnect SRS unit connectors A (39P) and B (39P) from the SRS unit (C).
    NOTE: The SRS unit connectors have lever locks. Release the locks before disconnecting the connectors (see LEVER-LOCKED CONNECTOR  ).

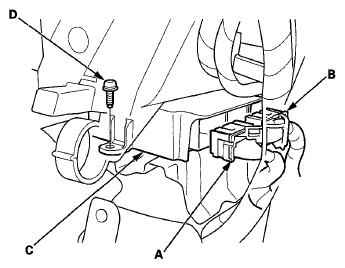

    Fig 2: Identifying SRS Unit Connectors A (39P) And B (39P) Of SRS Unit
    G06971689Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Remove the TORX bolt (D) from left side, using a TORX T30 bit.
  10. Remove the TORX bolts (A) from right side, using a TORX T30 bit.
    Fig 3: Identifying SRS Unit And Torx Bolt
    G06971690Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Remove the SRS unit (B) from the left side.
