SRS Unit Replacement: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the SRS unit (A) with the new TORX bolts (B) using a TORX T30 bit.

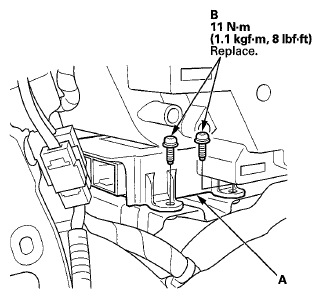

    Fig 1: SRS Unit And Torx Bolt With Torque Specifications
    G06971691Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the new TORX bolt (C) using a TORX T30 bit.

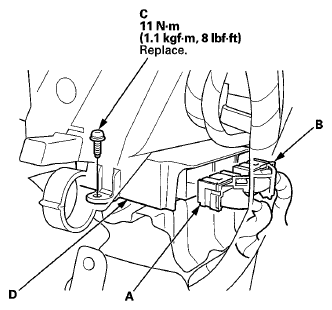

    Fig 2: SRS Unit Connectors A (39P) And B (39P) Of SRS Unit And Torx Bolt With Torque Specifications
    G06971692Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Connect SRS connectors A (39P) and B (39P) to the SRS unit (D); push them into position until they click and the lever locks are fully secured (see LEVER-LOCKED CONNECTOR  ).
  4. Tighten the three installed TORX bolts to the specified torque.
  5. Install left heater duct (A), and push the clip (B) to the heater duct.

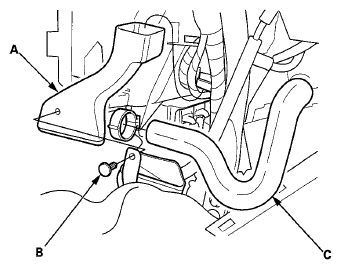

    Fig 3: Identifying Left Heater Duct, Clip And Cool Box Outlet Hose
    G06971693Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. With cool box: Install the cool box outlet hose (C).
  7. Install the driver's and passenger's heater panel (see step 1 on CENTER LOWER CONSOLE REMOVAL/INSTALLATION ).
  8. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  9. Make sure the SRS unit has the latest software. If it does not have the latest, update the software in the SRS unit (see SRS UNIT UPDATE  ).
  10. Do the ODS unit initialization (see ODS UNIT INITIALIZATION  ).
  11. Check the operation of the ODS unit with the HDS (see ODS UNIT OPERATION CHECK  ).
  12. Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
