Rear Safing Sensor Replacement: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear safing sensor (A) with the new TORX bolt (B) using a TORX T30 bit, and tighten the TORX bolt to the specified torque.

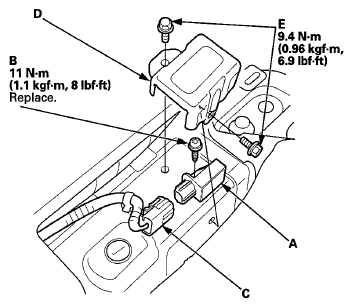

    Fig 1: Cover, Torx Bolt, Rear Safing Sensor And 2P Connector With Torque Specifications
    G06971704Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the rear safing sensor 2P connector (C) on the left side wire harness.
  3. Install the cover (D), then tighten the mounting bolts (E) to the specified torque.
  4. Reinstall the carpet (A), and install the clips (B).

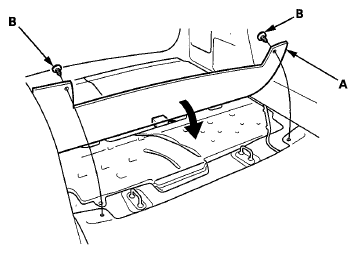

    Fig 2: Installing Carpet
    G06971705Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  6. Clear any DTCs with the HDS (see HOW TO CLEAR DTCS  ).
  7. Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
  8. Install the center upper pivot cover (see step 6 on THIRD ROW SEAT REMOVAL/INSTALLATION ).
  9. Install the left and right upper pivot cover (see step 5 on THIRD ROW SEAT REMOVAL/INSTALLATION ).
  10. Install the center lower pivot cover (see step 3 on THIRD ROW SEAT REMOVAL/INSTALLATION ).
  11. Install the left and right lower pivot cover (see step 2 on THIRD ROW SEAT REMOVAL/INSTALLATION ).
