ODS Unit Replacement: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Be sure to install the harness so that they are not pinched or interfering with other parts.
  • Make sure that the seat-back cover/pad is installed properly. Improper installation may prevent proper deployment.
  1. Place the ODS unit (A) on the seat-back frame. Tighten the new two mounting nuts (B) to the specified torque.

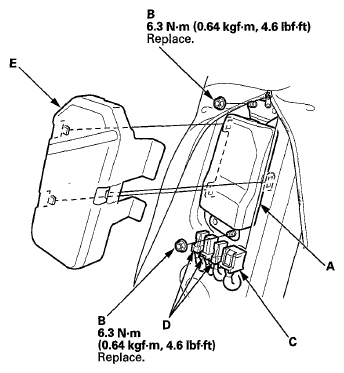

    Fig 1: ODS Unit With 2P Connector, OPDS Sensor Connector And Mounting Nuts With Torque Specifications
    G06971707Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the ODS unit 18P connector (C) and OPDS sensor connectors (D) to the ODS unit. Install the cover (E).
  3. Reinstall the seat-back cover/pad in the reverse order of removal (see step 8 on FRONT SEAT-BACK COVER REPLACEMENT ).
  4. Close the seat-back cover, and install the bottom hook (see step 4 on FRONT SEAT-BACK COVER REPLACEMENT ).
  5. Install the elastic strap to the seat cushion frame springs (see step 2 on FRONT SEAT-BACK COVER REPLACEMENT ).
  6. Install the front seat armrest (see FRONT SEAT ARMREST REPLACEMENT ).
  7. Install the front passenger's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
  8. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  9. Set the seat-back in the normal position, and make sure there is nothing on the front passenger's seat.
  10. Clear any DTCs with the HDS (see HOW TO CLEAR DTCS  ).
  11. Do the ODS unit initialization (see ODS UNIT INITIALIZATION  ).
  12. Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
