Front Impact Sensor Replacement: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before starting work.
  2. Remove the front inner fender (see FRONT INNER FENDER REPLACEMENT ).
  3. Disconnect the front impact sensor 2P connector (A) on the left or right engine compartment wire harness.

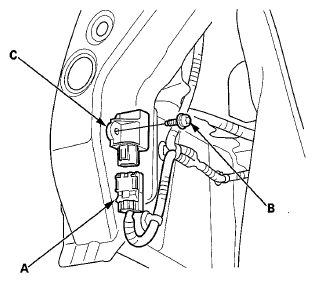

    Fig 1: Identifying Front Impact Sensor With 2P Connector And Torx Bolt
    G06971708Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the TORX bolt (B) using a TORX T30 bit, then remove the front impact sensor (C).
