Driver's Seat Position Sensor Replacement: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Be sure to install the harness so it is not pinched or interferes with other parts.
  • Do not turn the ignition switch to ON (II) while installing the driver's seat position sensor.
  1. Install the driver's seat position sensor (A) with the new TORX bolt (B) and the new nut (C) using a TORX T30 bit, and tighten the TORX bolt while holding the nut to the specified torque.

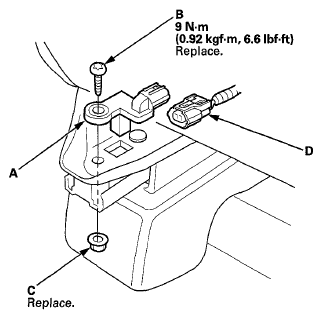

    Fig 1: Driver's Seat Position Sensor With 2P Connector And Torx Bolt With Torque Specifications
    G06971711Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the driver's seat position sensor 2P connector (D) on the driver's seat wire harness.
  3. Clear any DTCs with the HDS (see HOW TO CLEAR DTCS  ).
  4. Check the operation of the driver's seat position sensor with the HDS (see DRIVER'S SEAT POSITION SENSOR OPERATION CHECK  ).
  5. Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
  6. Install the outer cover (see step 3 on FRONT SEAT FRAME REPLACEMENT ).
