Component Replacement/Inspection After Deployment: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Before doing any SRS repairs, check for DTCs with the HDS (see HOW TO READ DTCS ) for the less obvious deployed Components (front seat belt tensioners, driver's seat belt outer lap tensioner, front impact sensors, side impact sensors, rear safing sensor, etc).
If the harness is broken or damaged in the areas relevant to the replacement parts shown below, replace the harness, do not repair it.
Do not replace the ODS unit unless it is physically damaged or a specific fault was found during DTC troubleshooting because it could complicate troubleshooting other DTCs.
After a vehicle collision, do the ODS unit operation check (see ODS UNIT OPERATION CHECK ).
After a vehicle collision, inspect the front seat active head restraints (see FRONT SEAT ACTIVE HEAD RESTRAINT INSPECTION ).

After a collision where the front seat belt tensioners deployed, replace these items:

SRS unit
Front seat belt(s)
Driver's seat belt outer lap tensioner
Front impact sensor(s)

After a collision where the driver's seat belt outer lap tensioner deployed, replace these items:

SRS unit
Front seat belt(s)
Driver's seat belt outer lap tensioner
Front impact sensor(s)

After a collision where the front airbag(s) deployed, replace these items:

SRS unit
Deployed front airbag(s)
Front seat belt(s)
Driver's seat belt outer lap tensioner
Front impact sensor(s)

After a collision where the side airbag has deployed, replace the items for the side(s) that deployed:

SRS unit
Deployed side airbag(s)
Side impact sensor(s) (first)
Side impact sensor(s) (second)
Side impact sensor(s) (third)
Rear safing sensor
B-pillar lower trim
Seat frame and related parts
Front seat belt(s)
Driver's seat belt outer lap tensioner

After a collision where a side curtain airbag has deployed, replace the items for the side(s) that deployed:

SRS unit
Front seat belt(s)
Driver's seat belt outer lap tensioner
Deployed side curtain airbag(s)
Side impact sensor(s) (first)
Side impact sensor(s) (second)
Side impact sensor(s) (third)
Rear safing sensor
A-pillar upper trim
B-pillar upper trim
C-pillar trim
D-pillar trim
Front grab handle
Rear grab handle
All related trim clips
Sunvisor
Headliner

After a moderate to severe side or rear collision, inspect for any damage on the side curtain airbag or other related components. Replace the Components as needed.

A-Pillar Upper Trim

Fig 1: Identifying A-Pillar Upper Trim

Courtesy of AMERICAN HONDA MOTOR CO., INC.

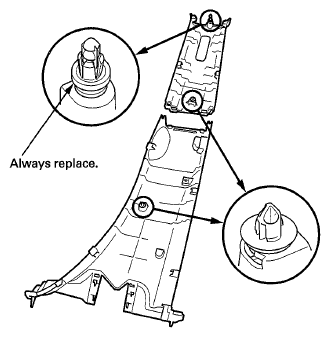

B-Pillar Upper/Lower Trim

Fig 2: Identifying B-Pillar Upper/Lower Trim

Courtesy of AMERICAN HONDA MOTOR CO., INC.

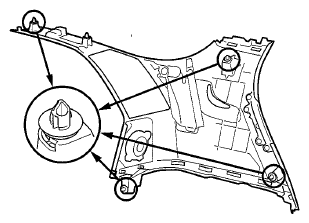

C-Pillar Trim

Fig 3: Identifying C-Pillar Trim

Courtesy of AMERICAN HONDA MOTOR CO., INC.

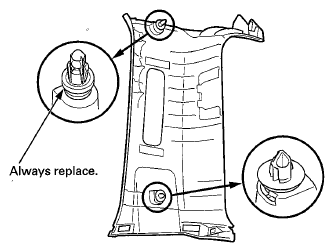

D-Pillar Trim

Fig 4: Identifying D-Pillar Trim

Courtesy of AMERICAN HONDA MOTOR CO., INC.

During the repair process, inspect these areas:

Inspect all the SRS wire harnesses. Replace, do not repair, any damaged harnesses.
Inspect the cable reel for heat damage. If there is any damage, replace the cable reel (see CABLE REEL REPLACEMENT ).

After the vehicle is completely repaired, turn the ignition switch to ON (II). If the SRS indicator comes on for about 6 seconds and then goes off, the SRS is OK. If the indicator does not function properly, use the HDS to check for the DTCs (see HOW TO READ DTCS ). If you cannot retrieve a code, do the SRS Symptom Troubleshooting.
