Cable Reel Replacement: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before installing the steering wheel, make sure the front wheels are aligned straight ahead.
  2. Set the turn signal canceling sleeve (A) so that the projections (B) are aligned vertically.
    Fig 1: Setting Turn Signal Canceling Sleeve
    G06971683Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Carefully install the cable reel (C) on the steering column shaft. Then connect cable reel connector A (20P) on the dashboard wire harness and cable reel connector B (4P) on the dashboard wire harness to the cable reel.

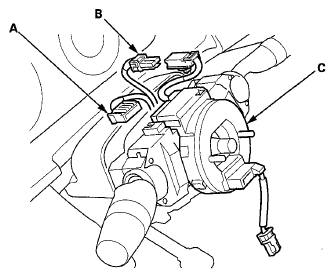

    Fig 2: Identifying Cable Reel Connector A (2P) And B (4P) And Cable Reel
    G06971684Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the upper and lower column covers (see COLUMN COVER REMOVAL/INSTALLATION ).
  5. Before installing the steering wheel, make sure the front wheels are pointing straight ahead, then center the cable reel (A). Do this by first rotating the cable reel clockwise until it stops. Then rotate it counterclockwise about three full turns. The arrow mark (B) on the cable reel label should point straight up.
    Fig 3: Identifying Arrow Mark On Cable Reel
    G06971685Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Position the two tabs (A) of the turn signal canceling sleeve (B) as shown. Install the steering wheel on to the steering column shaft; making sure the steering wheel hub (C) engages the pins (D) of the cable reel and tabs of the turn signal canceling sleeve. Do not tap on the steering wheel or steering column shaft when installing the steering wheel.

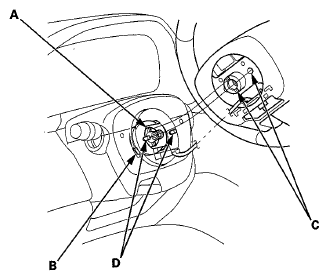

    Fig 4: Positioning Tabs Of Turn Signal Canceling Sleeve
    G06971686Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the steering wheel bolt (A), and tighten it to the specified torque. Connect cable reel connector C (20P) on the cable reel subharness to the cable reel (B). Make sure the wire harness is routed and fastened properly.

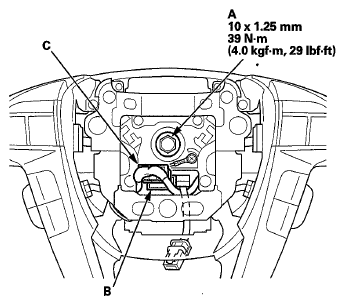

    Fig 5: Cable Reel And Steering Wheel Bolt With Torque Specification
    G06971687Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT  ).
  9. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  10. Clear any DTCs with the HDS (see HOW TO CLEAR DTCS  ).
  11. After installing the cable reel, confirm proper system operation:
    • Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
    • Make sure the horn and turn signal switches works properly.
    • Make sure the steering wheel switches works properly.
    • Make sure the horn works properly.
  12. After installation, check the steering wheel spoke angle. If the steering spoke angles to the right and left are not equal (steering wheel is not centered), correct the engagement of the wheel/column shaft splines.
