Rear Undercover Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the rear bumper.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the rear undercover (A).
1. Remove the screw (B) and the bolt (C).
2. Detach the clips (D).
  NOTE: To release the clips, pry up on the center pin at the notch (E).

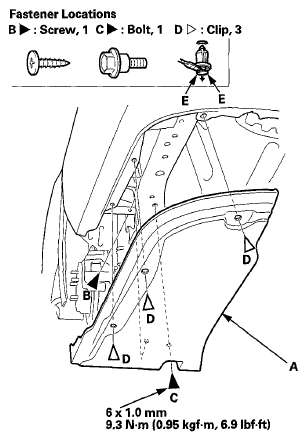

  Fig 1: Identifying Rear Undercover Replacement Components With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the undercover in the reverse order of removal, and note these items:
- If the clip is damaged or stress-whitened, replace it with a new one.
- Push the clips into place securely.
