Secondary HO2S (View 143)
Secondary HO2S (View 143)
BLU
Under middle of vehicle
On engine compartment wire harness (left branch)

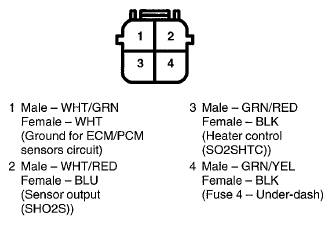

Fig 1: Secondary HO2S Connector Terminal (View 143)
