C570 (SC) (View 194)

• WHT
• Under center console
• Connects floor wire harness (left branch) to console sub-harness

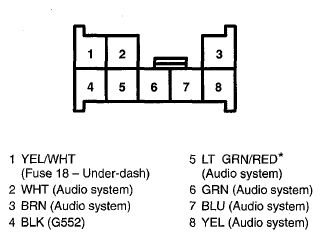

  Fig 1: C570 (SC) Connector Terminal (View 194)



* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
