Fuel Filter Replacement
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
The fuel filter should be replaced whenever the fuel pressure drops below the specified value (see FUEL PRESSURE TEST ), after making sure that the fuel pump and fuel pressure regulator are OK.
- Remove the fuel tank unit (see REMOVAL ).

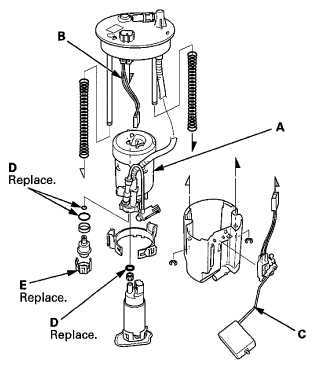

- Remove the fuel filter set (A).
- Check these items before installing the fuel tank unit:
- When connecting the wire harness (B), make sure the connection is secure and the connectors are firmly locked into place.
- When installing the fuel gauge sending unit (C), make sure the connection is secure and the connector is firmly locked into place. Be careful not to bend or twist it excessively.
- Install the parts in the reverse order of removal with new O-rings (D) and new bracket (E). When installing the fuel tank unit, align the marks on the unit and the fuel tank (see INSTALLATION
).NOTE:
- Coat the O-rings with clean engine oil; do not use any other oil or fluid.
- Do not pinch the O-rings during installation.
- Use all the new parts supplied in the fuel filter replacement kit.
