Brake Pedal Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  2. Disconnect the brake pedal position switch connector (A).

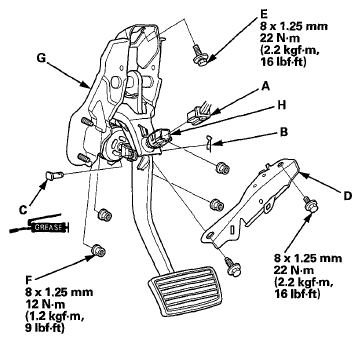

    Fig 1: Brake Pedal Position Switch Connector, Lock Pin, Clevis Pin And Brake Pedal Support Member With Torque Specification
    G06419446Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the lock pin (B) and the clevis pin (C).
  4. Remove the brake pedal support member (D).
  5. Remove the brake pedal bracket mounting bolt (E) and nuts (F).
  6. Remove the brake pedal with bracket (G).
  7. Remove the brake pedal position switch (H) by turning it 45° counterclockwise.
  8. Install in the reverse order of removal.
  9. Adjust the brake pedal and the brake pedal position switch (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT  ).
