DTC 86-14: F-CAN Communication With Gauge Control Module Malfunction

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Troubleshoot any fuel and emissions DTCs first.
Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information (see GENERAL TROUBLESHOOTING INFORMATION ).

Turn the ignition switch to ON (II).
Clear the DTC with the HDS.
Turn the ignition switch to LOCK (0) and then back to ON (II).
Check for DTCs with the HDS.
Is DTC 86-14 indicated?

YES -If DTC 86-11 is indicated at the same time, do the DTC 86-11 troubleshooting first (see DTC 86-11: F-CAN BUS-OFF MALFUNCTION ). If DTC 86-11 is not indicated, go to next step.

NO -If any other DTCs are indicated, go to the indicated DTCs troubleshooting. If DTCs are not indicated, intermittent failure, the system is OK at this time. Check for loose terminals between the gauge control module 32P connector and the VSA modulator-control unit 22P connector. Refer to INTERMITTENT FAILURES TROUBLESHOOTING .
Turn the ignition switch to LOCK (0) and then back to ON (II).
Do the gauge indicators come on?

YES -Go to next step.

NO -Do the gauge control module troubleshooting (see SELF-DIAGNOSTIC FUNCTION ).
Turn the ignition switch to LOCK (0).
Disconnect the gauge control module 32P connector (see GAUGE CONTROL MODULE REPLACEMENT ).
Disconnect the VSA modulator-control unit 22P connector (see step 4 on ).

Check for continuity between the VSA modulator-control unit 22P connector terminal and gauge control module 32P connector terminal (see table).

TERMINAL REFERENCE

Sign	VSA Modulator-Control Unit 22P Connector Terminal	Gauge Control Module 32P Connector Terminal
F-CAN L	No. 15	No. 20
F-CAN H	No. 10	No. 19

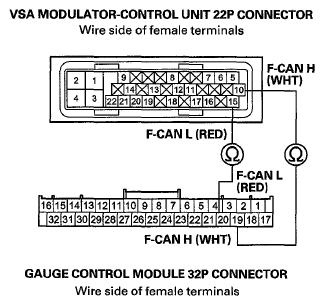

Fig 1: Identifying VSA Modulator-Control Unit And Gauge Control Module Connector Terminal Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to next step.

NO -Repair an open in the wire between the gauge control module and the VSA modulator-control unit.

Substitute a known-good gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ).
Reconnect all connectors.
Turn the ignition switch ON (II).
Clear the DTCs with the HDS.
Turn the ignition switch to LOCK (0), and then back to ON (II).
Check the DTCs with the HDS.
Is DTC 86-14 indicated?

YES -Go to next step.

NO -Replace the original gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ).
Update the VSA modulator-control unit if it does not have the latest software (see VSA MODULATOR-CONTROL UNIT UPDATE ). If the unit already has the latest software, substitute a known-good VSA modulator-control unit (see VSA MODULATOR-CONTROL UNIT REMOVAL AND INSTALLATION ).
Turn the ignition switch to LOCK (0) and then back to ON (II).
Check for DTCs with the HDS.
Is DTC 86-14 indicated?

YES -Check for loose terminals in the VSA modulator-control unit 22P connector. If the VSA modulator-control unit was updated, substitute a known-good VSA modulator-control unit (see VSA MODULATOR-CONTROL UNIT REMOVAL AND INSTALLATION ), then retest. If the VSA modulator-control unit was substituted, go to 1.

NO -If the VSA modulator-control unit was updated, troubleshooting is complete. If the VSA modulator-control unit was substituted, replace the original VSA modulator-control unit (see VSA MODULATOR-CONTROL UNIT REMOVAL AND INSTALLATION ). If any other DTCs are indicated, go to the indicated DTCs troubleshooting.
