Strut Brace Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the brake booster vacuum hose (A) from

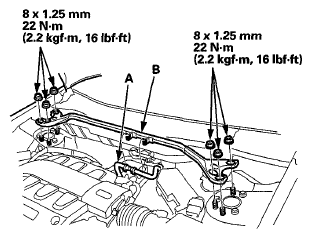

    Fig 1: Brake Booster Vacuum Hose And Strut Brace With Torque Specifications
    G06420045Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the nuts from the top of the damper, and remove the strut brace.
  3. Install the strut brace in the reverse order of removal.
