Front Engine Mount Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front engine mount (A), using new bolts (B), then connect the engine mount actuator connector (C).

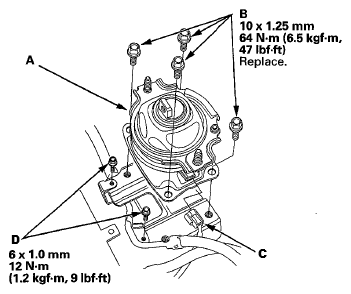

    Fig 1: Identifying Front Engine Mount And Engine Mount Actuator Connector
    G06419065Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the two bolts (D) securing the ATF cooler pipe bracket.
  3. Remove the jack and the wood block.
  4. Install the front engine mount bolt (A), then install the front engine mount stop mounting nuts (B).

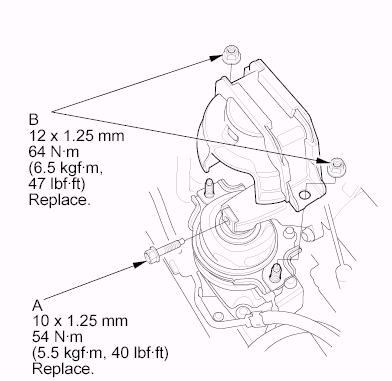

    Fig 2: Identifying Front Engine Mount Bolt And Front Engine Mount Stop
    G06419066Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the radiator fan shroud assembly, then install the A/C condenser fan shroud assembly (see INSTALLATION ).
