Component Location Index: 2WD

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

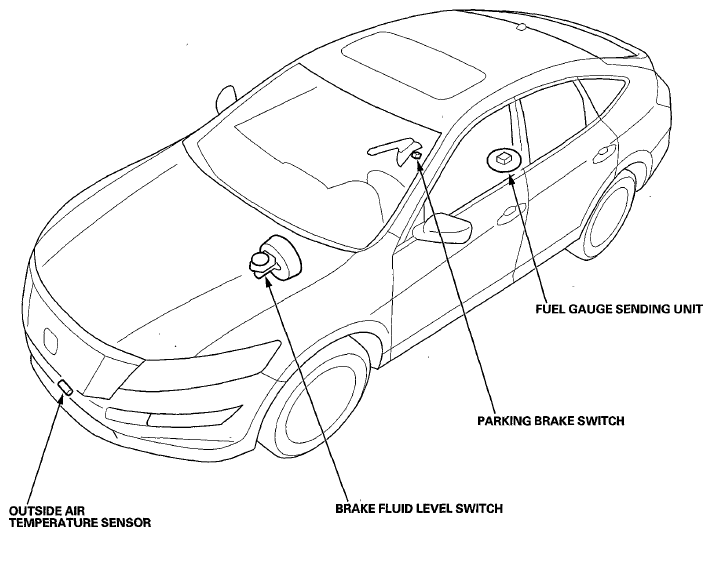

Fig 1: Identifying Outside Air Temperature Sensor, Brake Fluid Level Switch, Parking Brake Switch, Fuel Gauge Sending Unit - 2WD

Courtesy of AMERICAN HONDA MOTOR CO., INC.

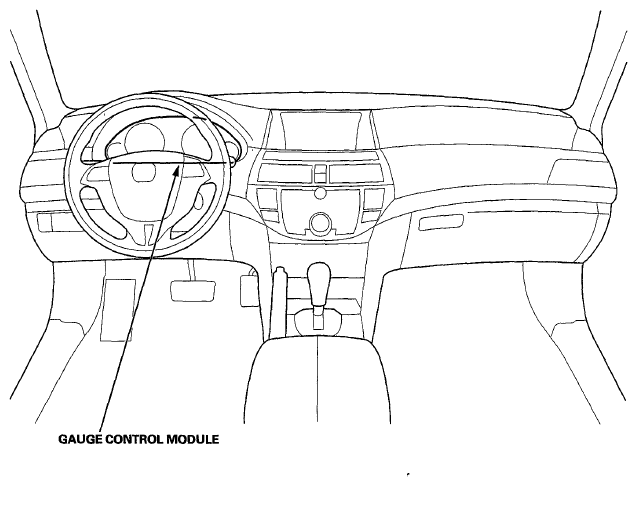

Fig 2: Identifying Gauge Control Module

Courtesy of AMERICAN HONDA MOTOR CO., INC.

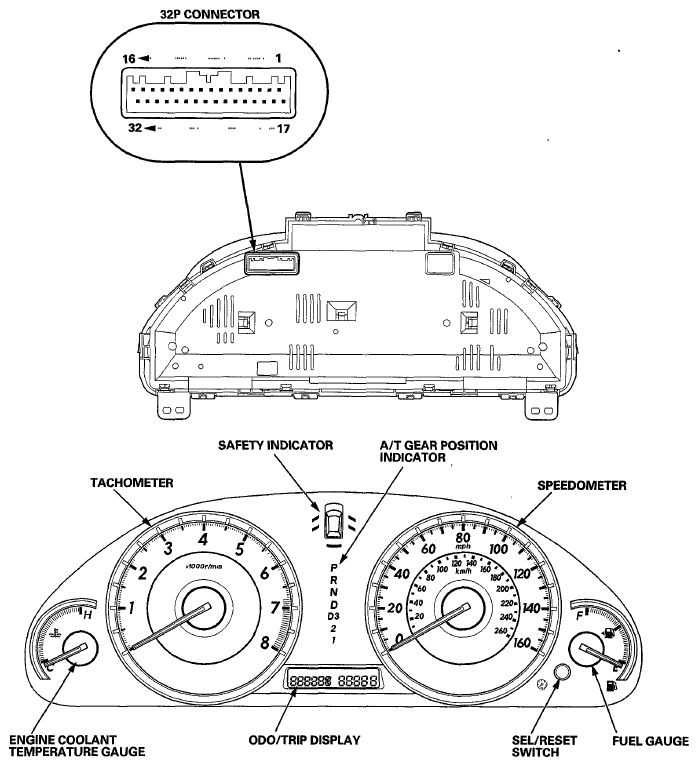

Fig 3: Identifying Tachometer, Safety Indicator, A/T Gear Position Indicator, Speedometer And Fuel Gauge

Courtesy of AMERICAN HONDA MOTOR CO., INC.
