Throttle Body Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not insert your fingers into the installed throttle body when you turn the ignition switch to ON (II) or while the ignition switch is in ON (II). If you do, you will seriously injure your fingers if the throttle valve is activated.

Make sure the ignition switch turned LOCK (0).
Disconnect the MAP sensor connector (A).

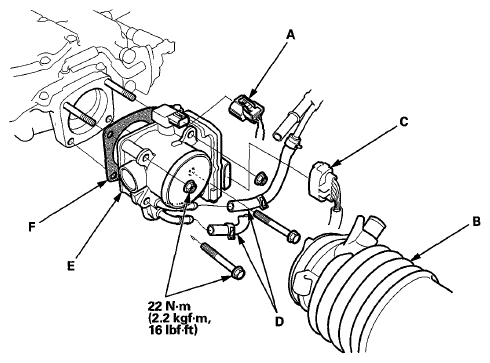

Fig 1: MAP Sensor Connector And Intake Air Duct With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the intake air duct (B).
Disconnect the throttle body connector (C).
Disconnect and plug the water bypass hoses (D).
Remove the throttle body (E).
Install the parts in the reverse order of removal with a new gasket (F), then refill the radiator with engine coolant (see COOLANT CHECK ).
NOTE: If it is in case of replacing or cleaning the throttle body, go to step 8. If it isn't, this proceedure is completely.

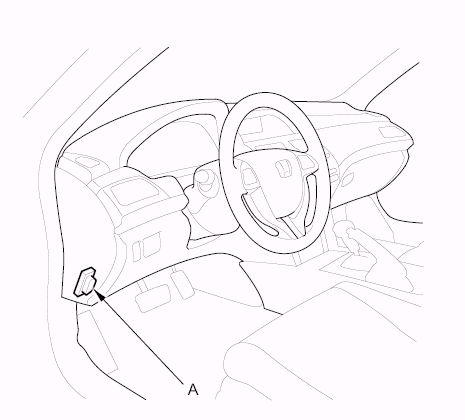

Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

Fig 2: MAP Sensor Connector And Intake Air Duct With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch to ON (II).
Reset the PCM with the HDS.
Select the ETCS TEST in the INSPECTION MENU with the HDS.
Select TP POSITION CHECK and clear the throttle position (TP) learned value.
Turn the ignition switch to LOCK (0).
Turn the ignition switch to ON (II), and wait 2 seconds without pressing the accelerator pedal.
Do the PCM idle learn proceedure (see IDLE SPEED INSPECTION ).
