Symptom Troubleshooting Using Malfunctioning Circuit Functions

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

If a malfunction occurs in the immobilizer circuit, use the table to cross-reference the malfunction criteria to the line(s) that should be checked table:

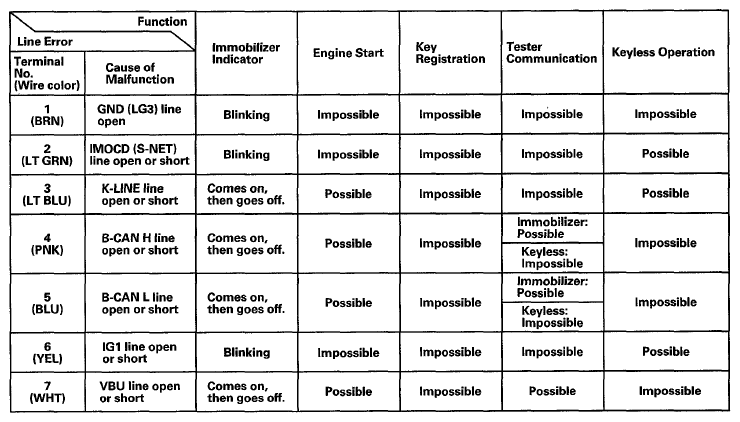

Fig 1: Symptom Troubleshooting Chart
G06420210Courtesy of AMERICAN HONDA MOTOR CO., INC.
