Park Pin Switch Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Disconnect the park pin switch/A/T gear position indicator panel light 6P connector (A) from the park pin switch (B).

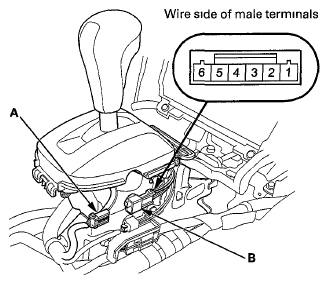

Fig 1: Identifying Park Pin Switch/A/T Gear Position Indicator Panel Light 6P Connector And Park Pin Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according of the table.

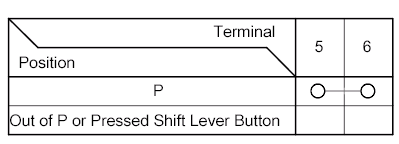

Fig 2: Identifying Terminal Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, check the shift cable adjustment (see SHIFT CABLE ADJUSTMENT ). If the cable adjustment is OK, replace the park pin switch (see SHIFT CABLE REPLACEMENT ).
