Total Starting Torque Measurement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer assembly (see TRANSFER ASSEMBLY REMOVAL  ).
  2. Secure the transfer housing (A) in a bench vise (B) with soft jaws.

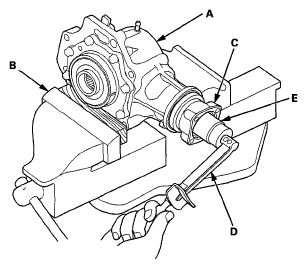

    Fig 1: Measuring Starting Torque Companion Flange
    G06423599Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Rotate the transfer companion flange several times to seat the tapered roller bearings.
  4. Measure the starting torque at the companion flange (C) using a torque wrench (D) and a socket (E).

    Standard: 2.38-4.01 N.m

    (24.3-40.9 kgf.m, 21.1-35.5 lbf.ft)

    • If the starting torque is out of standard, replace the transfer assembly.
    • If the starting torque is within standard, go to next step.
  5. Install the transfer assembly (see TRANSFER ASSEMBLY INSTALLATION  ).
