Shift Lock System

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

The shift lock system prevents the shift lever from moving unless certain conditions are met. The shift lock solenoid is normally OFF. After starting the engine in P, the shift lever cannot move to any other position from P because the shift lock stop stops the lock pin. When the brake pedal is pressed and the accelerator pedal is not pressed, the PCM, commands the shift lock solenoid ON; the shift lock solenoid plunger in the shift lock solenoid pulls the shift lock stop to release the lock pin. Pressing the shift lever button allows the shift lever to move to any other position. When the brake pedal and the accelerator pedal are pressed at the same time, the PCM commands the solenoid OFF and the shift lock system is locked.

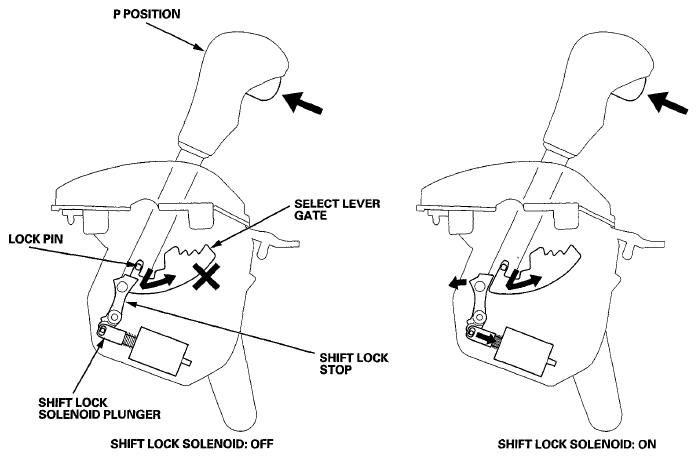

Fig 1: Identifying Shift Lock System On And Off Position

Courtesy of AMERICAN HONDA MOTOR CO., INC.

When the shift lock system does not operate due to a mechanical or electrical problem, you can unlock the shift lock temporarily by inserting the ignition key into the shift lock release hole and pressing the shift lock release. When the shift lock release is pressed, the shift lock stop releases the lock pin, and the shift lever can move to any other position.

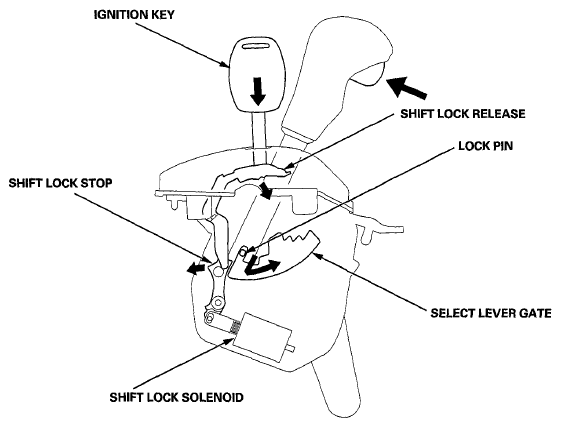

Fig 2: Inserting Ignition Key Into Shift Lock Release Hole

Courtesy of AMERICAN HONDA MOTOR CO., INC.
