N Position
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
Engine power transmitted from the mainshaft, drives the mainshaft 3rd gear and the intermediary shaft 3rd gear, but hydraulic pressure is not applied to the clutches. Power is not transmitted to the countershaft. In this position, the position of the reverse selector differs according to whether the shift lever shifted from D or R:
- When shifted from D, the reverse selector engages with the countershaft 5th gear and the reverse selector hub, and 5th gear engages with the countershaft.
- When shifted from R, the reverse selector engages with the countershaft reverse gear and the reverse selector hub, and the reverse gear engages with the countershaft.
NOTE:

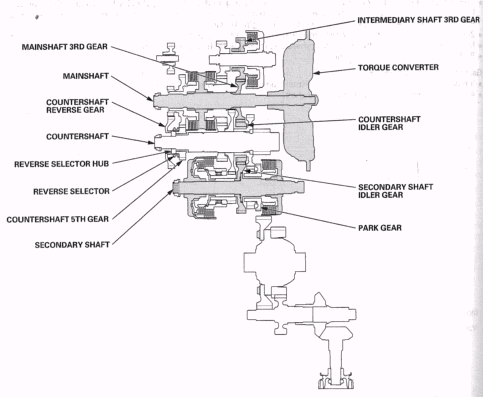

This illustration shows 4WD transmission, the 2WD does not have the transfer assembly.
