PCM A/T Control System Inputs and Outputs at PCM Connector B Δ (49P)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

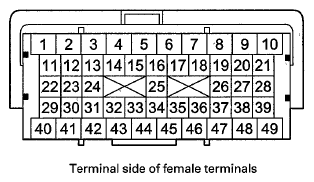

Fig 1: Identifying PCM Connector B (49P) Connector Terminal Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

CONNECTOR TERMINAL REFERENCE

Terminal Number	Wire Color	Terminal Name	Description	Signal
1	BLK	PG2 (POWER GROUND)	Ground circuit for PCM circuit	Less than 0.2 V at all times
2	TAN	VBSOL (POWER SOURCE FOR SOLENOID VALVES)	Power source for solenoid valves	With ignition switch ON (II): battery voltage
3	YEL	IGP (POWER SOURCE FOR PCM)	Power source for PCM circuit	With ignition switch ON (II): battery voltage
10	PUR	LSB (A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE B)	Drives A/T clutch-pressure control solenoid valve B	With ignition switch ON (II): current controlled
21	PNK	LSC (A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE C)	Drives A/T clutch pressure control solenoid valve C	With ignition switch ON (II): current controlled
34	BLU	SG1 (SENSOR GROUND)	Sensor ground	Less than 0.2 V at all times
36	PNK	VCC1 (SENSOR VOLTAGE)	Provides sensor reference voltage	With ignition switch ON (II): about 5.0 V
37	RED	NM (INPUT SHAFT (MAINSHAFT) SPEED SENSOR)	Detects input shaft (mainshaft) speed sensor signal	With ignition switch ON (II): about 0 V or about 5.0 V With engine idling in N: about 2.5 V
38	TAN	NC (OUTPUT SHAFT (COUNTERSHAFT) SPEED SENSOR)	Detects output shaft (countershaft) speed sensor signal	With ignition switch ON (II): about 0 V or about 5.0 V With driving: pulses
40	BLK	PG1 (POWER GROUND)	Ground circuit for PCM circuit	Less than 0.2 V at all times
41	BRN	LG2 (LOGIC GROUND)	Ground circuit for PCM	Less than 0.2 V at all times
42	GRY	IG1 (IGNITION SIGNAL)	Detects ignition signal	With ignition switch ON (II): battery voltage
