Shift Lever Disassembly/Reassembly

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands of gloves.

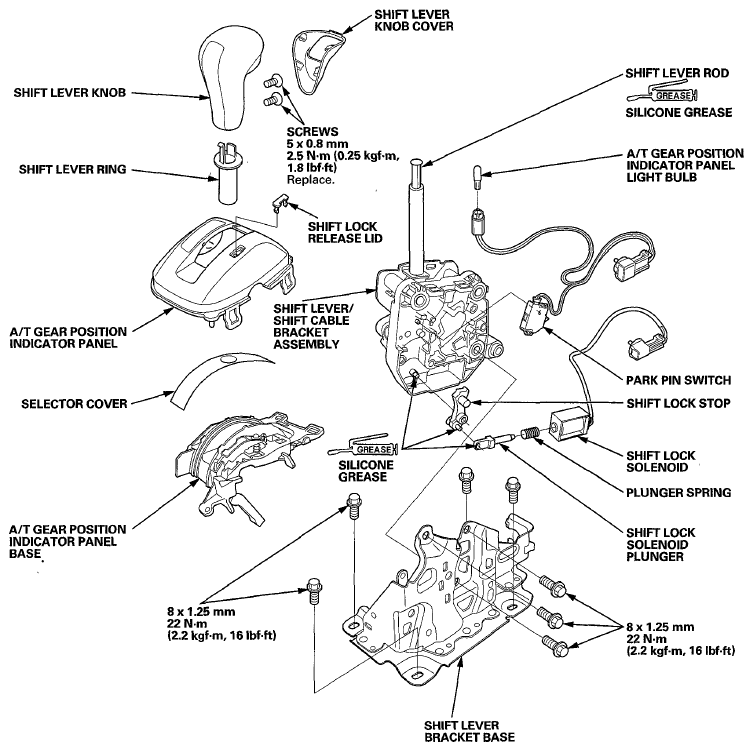

Fig 1: Disassembling View Of Shift Lever With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
