Road Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. 4WD: Apply the parking brake, and block all four wheels.

    2WD: Apply the parking brake, and block both rear wheels.

  2. Warm up the engine to normal operating temperature (the radiator fan comes on).
  3. Shift to the D while pressing the brake pedal. Press the accelerator pedal, and release it suddenly; The engine should not stall.
  4. Repeat step  3 in all shift lever positions.
  5. Connect the HDS to the DLC (A) located under the driver's side of the dashboard.

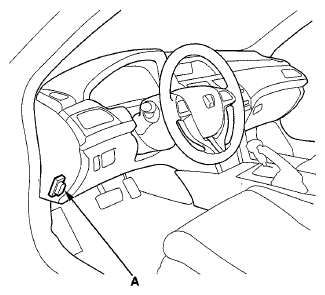

    Fig 1: Identifying Data Link Connector
    G06423177Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Turn the ignition switch to ON (II).
  7. Make sure the HDS communicates with the PCM, and go to the A/T Date List. If it does not, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
  8. Prepare the HDS to take a HIGH SPEED SNAPSHOT (refer to the HDS user's guide for more details if needed):
    • Select High Speed icon.
    • Select these parameters: -Speed Icon
      • Vehicle Speed
      • Output shaft (Countershaft) Speed (rpm)
      • Engine Speed
      • TP Sensor
      • APP Sensor A (V)
      • ETR
      • Battery Voltage
      • Shift Control
      • Brake Switch
    • Shift the Trigger Type to Parameter.
    • Adjust the Parameter setting to APP Sensor A above 1.1 V.
    • Set the recording time to 60 seconds.
    • Set the trigger point to (Negative) -30 seconds.
  9. Find a suitable level road. When you are ready to do the test, press OK with the HDS.
  10. Accelerate quickly until APP Sensor A reads 1.2 V. Maintain a steady throttle until the transmission shifts to 5th gear, then slow the vehicle and come to a stop.
  11. Save the snapshot if the entire event was recorded, or increase the recording time setting as necessary, and repeat step  10.
  12. Adjust the parameter setting to 2.4 V. Test-drive the vehicle again. While monitoring the HDS, accelerate quickly until APP Sensor A reads 2.5 V. Maintain a steady throttle until the transmission shifts to 5th gear (or reasonable speed), then slow the vehicle and come to a stop.
  13. Save the snapshot if the entire event was recorded, or increase the recording time setting as necessary, and repeat step  12.
  14. Accelerate quickly until the accelerator pedal is to the floor. Maintain a steady pedal until the transmission shifts to 4th gear, then slow to a stop, and save the snapshot.
  15. Review each snapshot individually, and compare the Shift Command, the APP Sensor A voltage, and the Vehicle Speed to following the table:

    Upshift: D Position

    APP SENSOR A VOLTAGE SPECIFICATION

    APP Sensor A voltage: 1.2 V
    1st → 2nd 9-12 mph (15-19 km/h)
    2nd → 3rd 16-19 mph (25-31 km/h)
    3rd → 4th 25-30 mph (40-48 km/h)
    4th → 5th 38-44 mph (61-71 km/h)
    Lock-up ON 36-41 mph (58-66 km/h)
    APP Sensor A voltage: 2.5 V
    1st → 2nd 23-26 mph (36-42 km/h)
    2nd → 3rd 40-46 mph (64-74 km/h)
    3rd → 4th. 59-66 mph (94-106 km/h)
    4th → 5th 79-88 mph (127-141 km/h)
    Lock-up ON 79-88 mph (127-141 km/h)
    Fully-opened throttle
    APP Sensor A voltage: 4.5 V
    1st → 2nd 39-45 mph (62-72 km/h)
    2nd → 3rd 66-73 mph (105-117 km/h)
    3rd → 4th 99-109 mph (159-175 km/h)
    Lock-up ON 112-121 mph (179-193 km/h)

    Downshift: D Position

    APP SENSOR A VOLTAGE SPECIFICATION

    APP Sensor A voltage: 1.2 V
    Lock-up OFF 35-40 mph (56-64 km/h)
    5th → 4th 35-40 mph (56-64 km/h)
    4th → 3rd 17-21 mph (27-33 km/h)
    3rd → 1st 5-9 mph (8-14 km/h)
    APP Sensor A voltage: 2.5 V
    Lock-up OFF 65-73 mph (104-116 km/h)
    Fully-opened throttle
    APP Sensor A voltage: 4.5 V
    Lock-up OFF 104-114 mph (166-182 km/h)
    5th → 4th 111-121 mph (178-194 km/h)
    4th → 3rd 81-39 mph (129-143 km/h)
    3rd → 2nd 52-59 mph (83-95 km/h)
    2nd → 1st 26-33 mph (42-52 km/h)
  16. Drive the vehicle in 4th or 5th gear in D, then shift to 2. The vehicle should immediately begin to slow down from engine braking.
  17. Shift to 1, accelerate from a stop at full throttle, and check for abnormal noise and clutch slippage. Also check that upshifts do not occur.
  18. Shift to 2, accelerate from a stop at full throttle, and check for abnormal noise and clutch slippage. Also check that upshifts and downshifts do not occur.
  19. Shift to R, accelerate from a stop at full throttle momentarily, and check for abnormal noise and clutch slippage.
  20. Park the vehicle on a slope (about 16 degrees), apply the brake, and shift into P. Release the brake; the vehicle should not move.
    NOTE: Always use the brake to hold the vehicle, when stopped on an incline in gear. Depending on the grade of the incline, the vehicle could roll if the brake is released.
