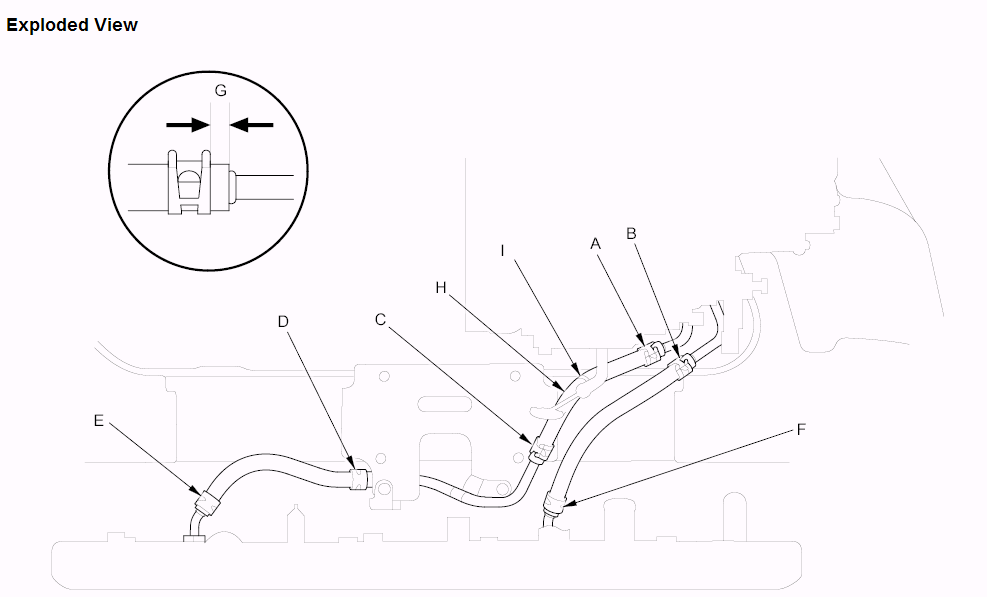

Exploded View

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying ATF Cooler Hose Connection

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: When installing the hose clamps, make sure they do not interfere with the surrounding parts.

Install the ATF cooler hoses over the ATF cooler lines with the clips at appropriate points in reference to the following list.

NOTE: Be sure to install the ATF cooler hose (H), make sure the green paint line (I) of the ATF cooler hose as shown.

PAINT REFERENCE

Point	Distance from Hose End to Clip (G)	Hose End Contact Point
A	6-8 mm (0.24-0.31 in)	Bulge
B
C
D
E	2-4 mm (0.08-0.16 in)	Bulge
F	2-4 mm (0.08-0.16 in)	Bulge

Refill the transmission with ATF to the proper level (see ATF REPLACEMENT ).
