Stereo Amplifier Removal/Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger's dashboard undercover (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ) and the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
  2. Disconnect the connectors (A) from the stereo amplifier (B). Loosen the bolt (C), and remove the nuts (D).

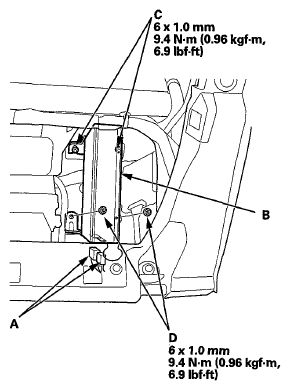

    Fig 1: Locating Connectors, Stereo Amplifier, Bolt And Nuts With Torque Specifications
    G06970916Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Pull up the stereo amplifier (A), and remove it.
    Fig 2: Locating Stereo Amplifier
    G06970917Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the stereo amplifier in the reverse order of removal.
