Intake Air Resonator Removal/Installation

  1. Remove the air cleaner (see THROTTLE BODY CLEANING ).
  2. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  3. Remove the intake air resonator (A).

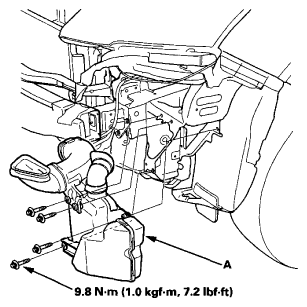

    Fig 1: Intake Air Resonator With Torque Specification
    G06610609Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the parts in the reverse order of removal.
