PCM Circuit Diagram

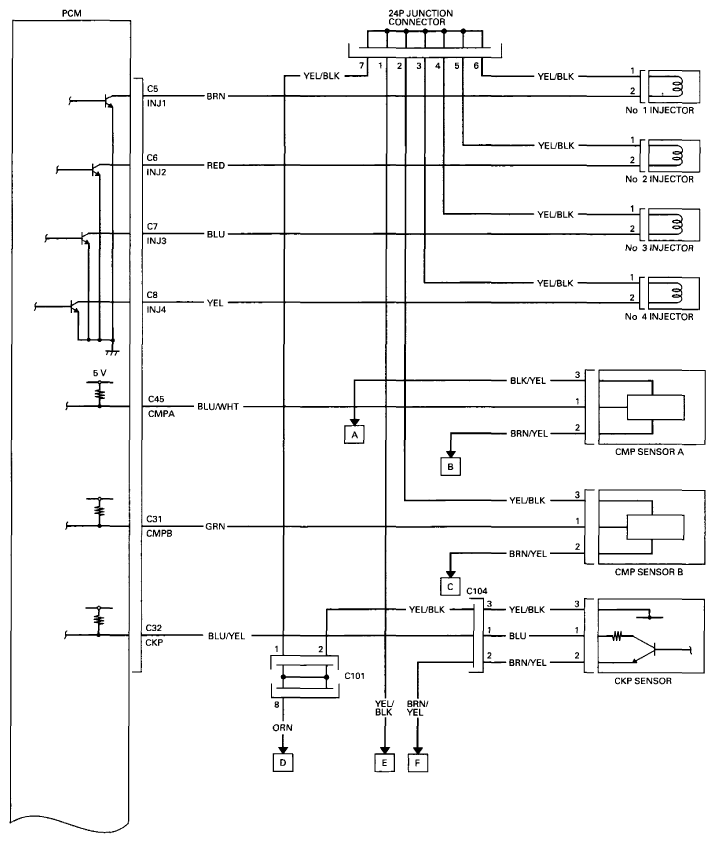

Fig 1: PCM Circuit Diagram (1 Of 11)

G06610220

Courtesy of AMERICAN HONDA MOTOR CO., INC.

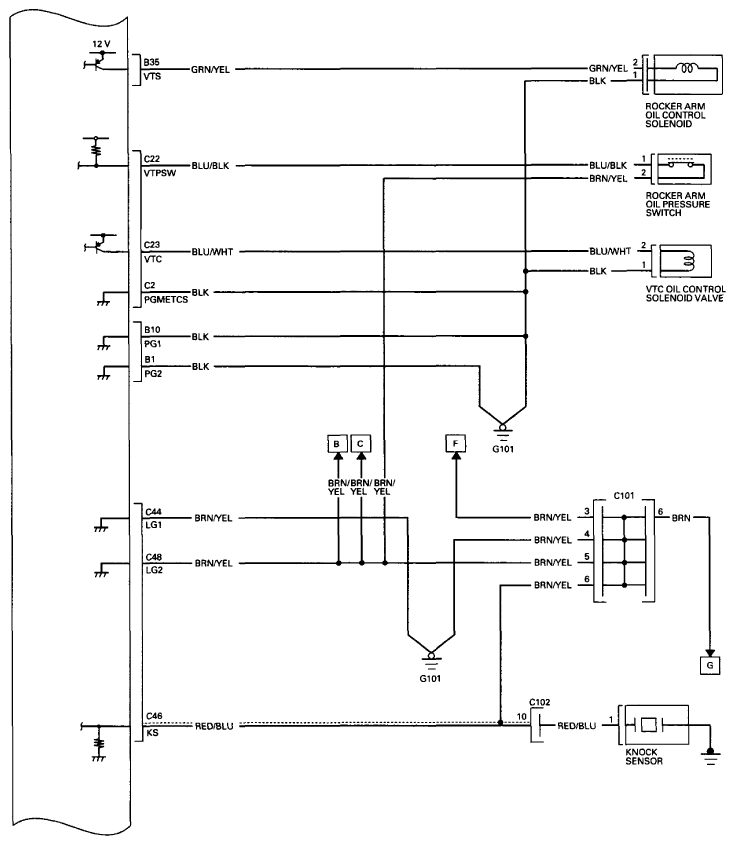

Fig 2: PCM Circuit Diagram (2 Of 11)

G06610221

Courtesy of AMERICAN HONDA MOTOR CO., INC.

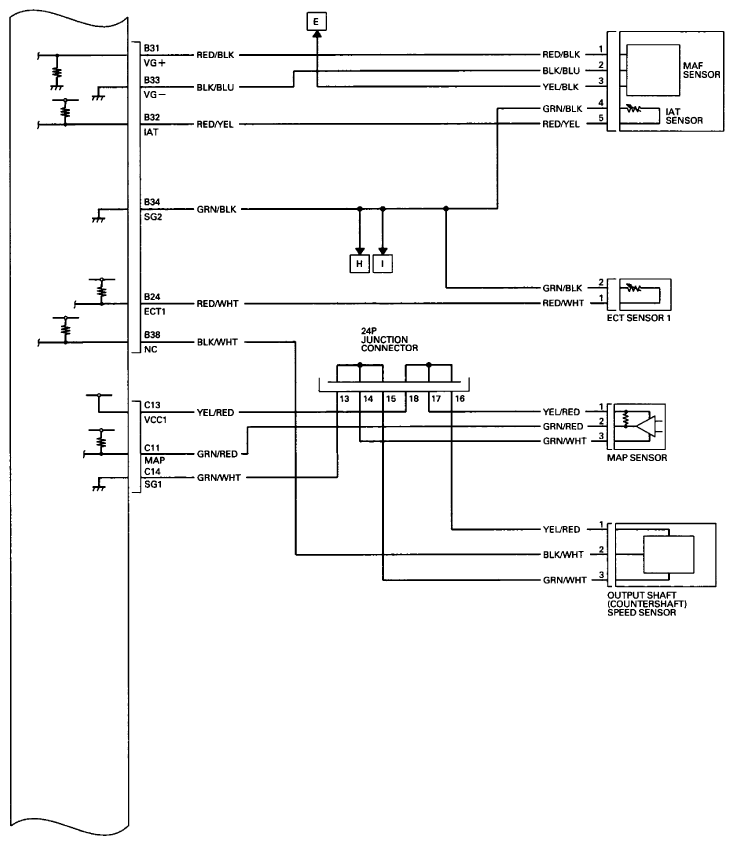

Fig 3: PCM Circuit Diagram (3 Of 11)

G06610222

Courtesy of AMERICAN HONDA MOTOR CO., INC.

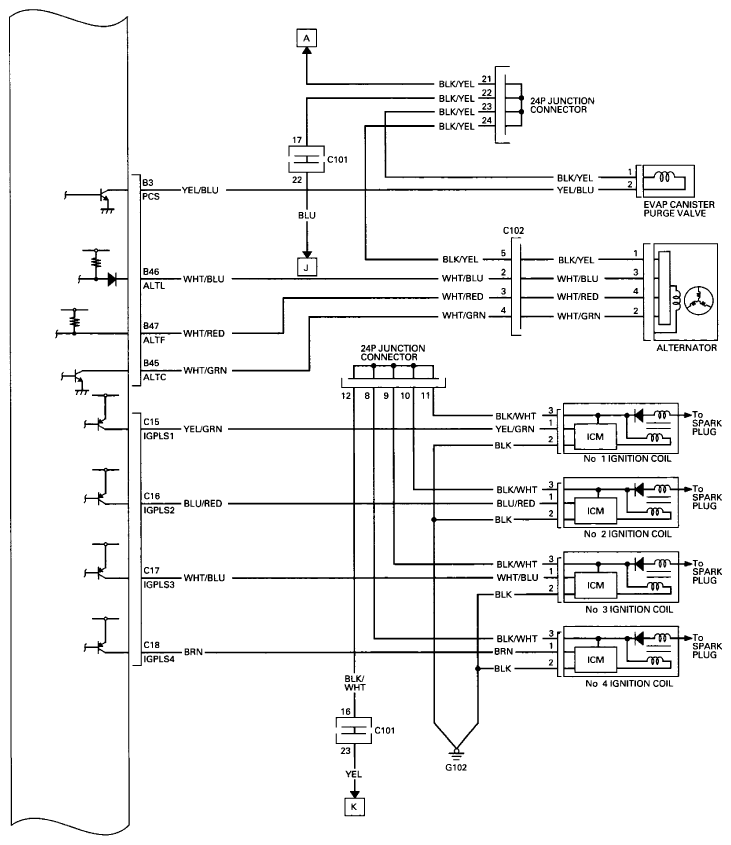

Fig 4: PCM Circuit Diagram (4 Of 11)

G06610223

Courtesy of AMERICAN HONDA MOTOR CO., INC.

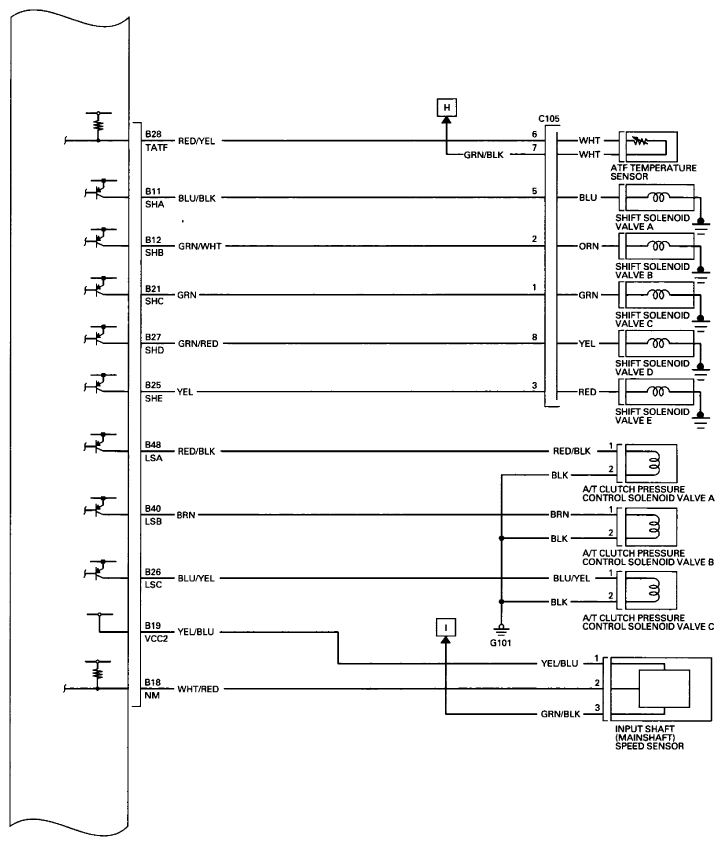

Fig 5: PCM Circuit Diagram (5 Of 11)

G06610224

Courtesy of AMERICAN HONDA MOTOR CO., INC.

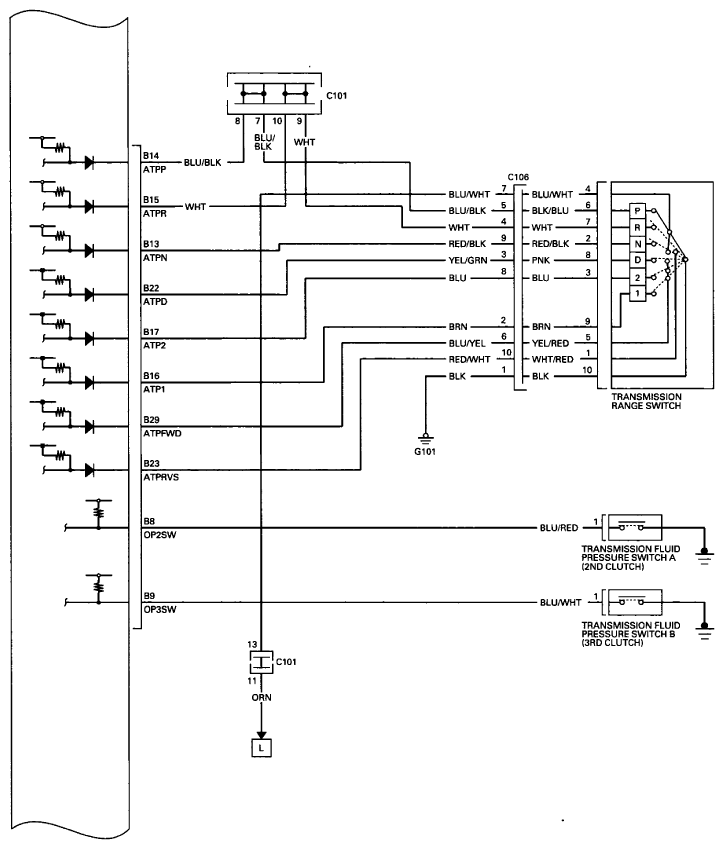

Fig 6: PCM Circuit Diagram (6 Of 11)

G06610225

Courtesy of AMERICAN HONDA MOTOR CO., INC.

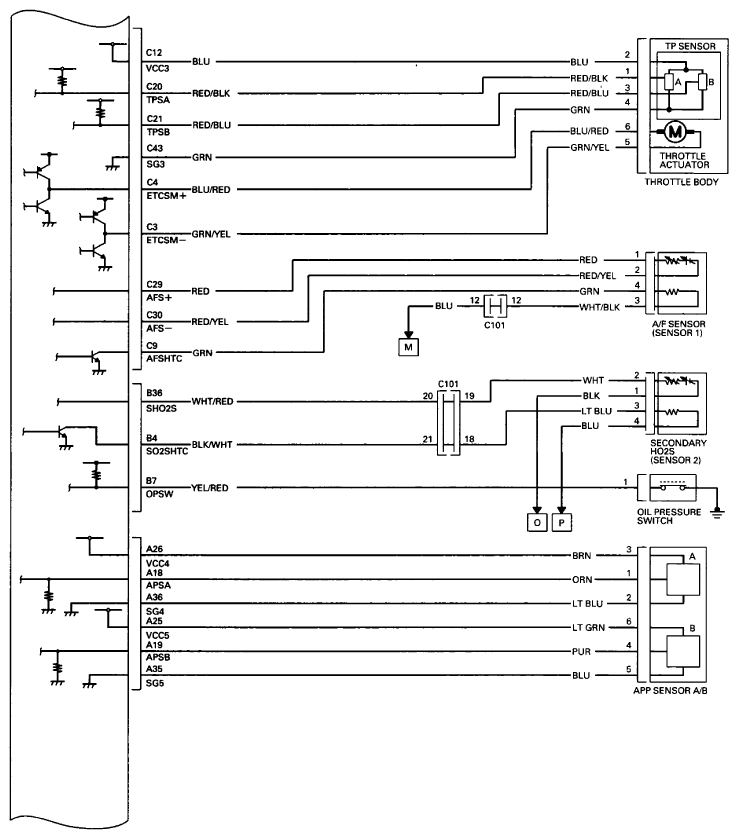

Fig 7: PCM Circuit Diagram (7 Of 11)

G06610226

Courtesy of AMERICAN HONDA MOTOR CO., INC.

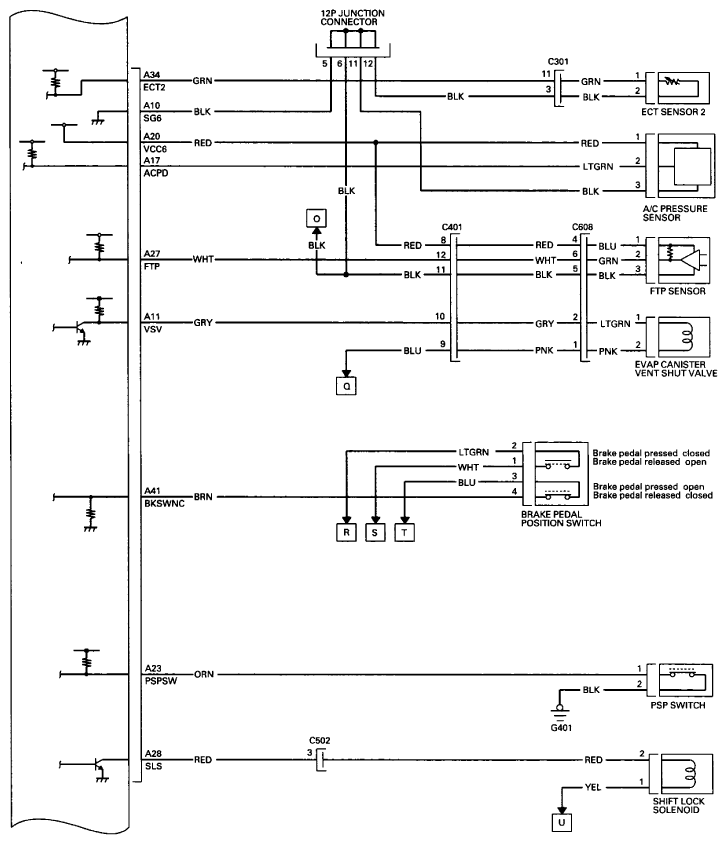

Fig 8: PCM Circuit Diagram (8 Of 11)

G06610227

Courtesy of AMERICAN HONDA MOTOR CO., INC.

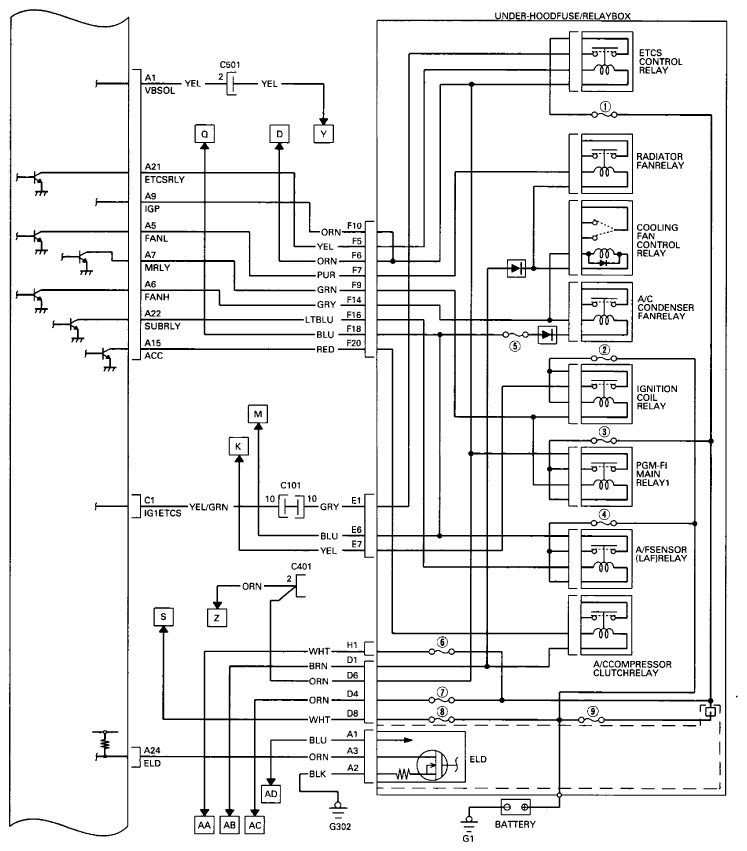

Fig 9: PCM Circuit Diagram (9 Of 11)

G06610228

Courtesy of AMERICAN HONDA MOTOR CO., INC.

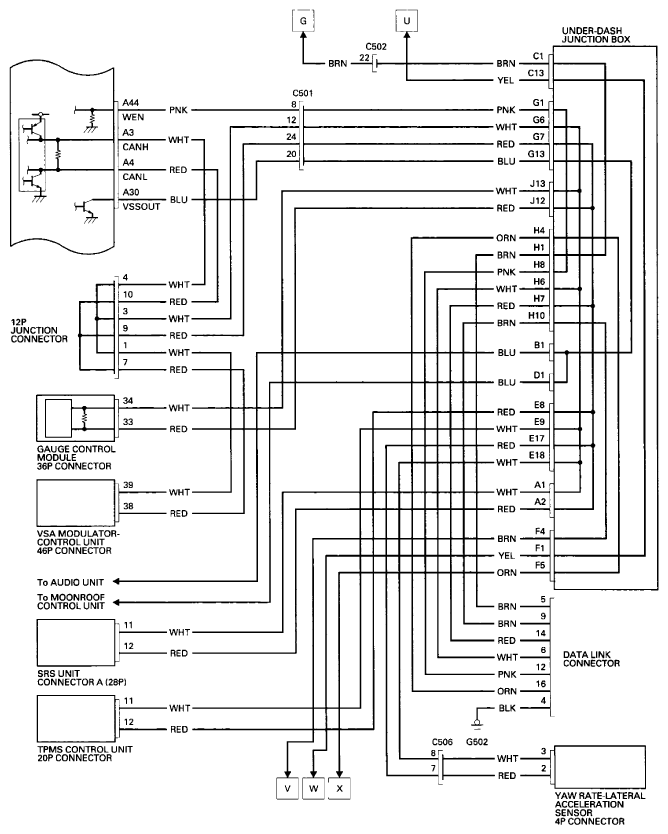

Fig 10: PCM Circuit Diagram (10 Of 11)

G06610229

Courtesy of AMERICAN HONDA MOTOR CO., INC.

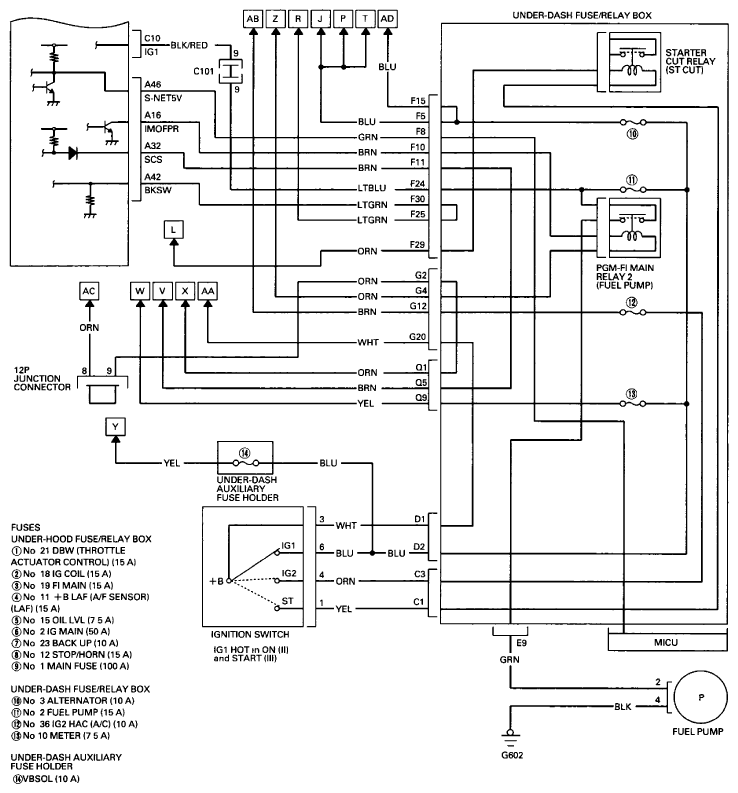

Fig 11: PCM Circuit Diagram (11 Of 11)

G06610230

Courtesy of AMERICAN HONDA MOTOR CO., INC.
