Piston, Pin, and Connecting Rod Replacement: Inspection

NOTE: Inspect the piston, the piston pin, and the connecting rod when they are at room temperature.

Measure the diameter of the piston pin.
Piston Pin Diameter

Standard (New): 21.961-21.965 mm (0.6646-0.8648 In)

Service Limit: 21.953 mm (0.8643 In)

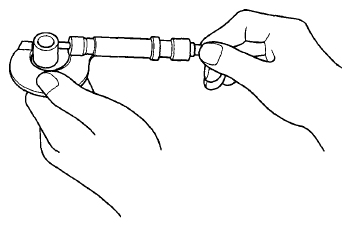

Fig 1: Measuring Diameter Of Piston Pin
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Zero the dial indicator to the piston pin diameter.

Fig 2: Measuring Piston Pin Diameter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the difference between the piston pin diameter and the piston pin hole diameter in the piston.
Piston Pin-to-Piston Clearance

Standard (New): -0.005-0.002 mm (-0.0002-0.0001 in)

Service Limit: 0.005 mm (0.0002 in)

Fig 3: Checking Difference Between Piston Pin Diameter And Piston Pin Hole Diameter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the piston pin-to-connecting rod clearance.
Piston Pin-to-Connecting Rod Clearance

Standard (New): 0.005-0.015 mm (0.0002-0.0006 in)

Service Limit: 0.02 mm (0.001 In)

Fig 4: Measuring Piston Pin-To-Connecting Rod Clearance
Courtesy of AMERICAN HONDA MOTOR CO., INC.
