Oil Filter Base Replacement

  1. Remove the oil filter (see ENGINE OIL FILTER REPLACEMENT ).
  2. Remove the exhaust pipe bracket (A), then remove the oil filter base (B).

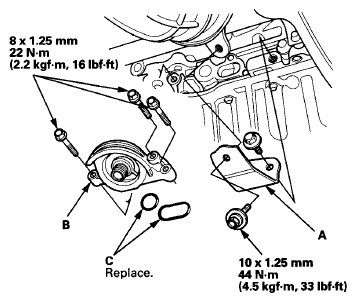

    Fig 1: Exhaust Pipe Bracket, O-Rings And Oil Filter Base With Torque Specifications
    G06609551Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Clean the O-ring grooves and the mating surface with the oil filter base.
  4. Install the oil filter base with new O-rings (C).
  5. Install the oil filter (see ENGINE OIL FILTER REPLACEMENT ).
