Home >> Honda >> 2009 >> S2000 CR >> Repair and Diagnosis >> Transmission >> Manual Transmission Overhaul >> Mainshaft Reassembly >> Exploded View >> 2000-2003 models:

2000-2003 models:

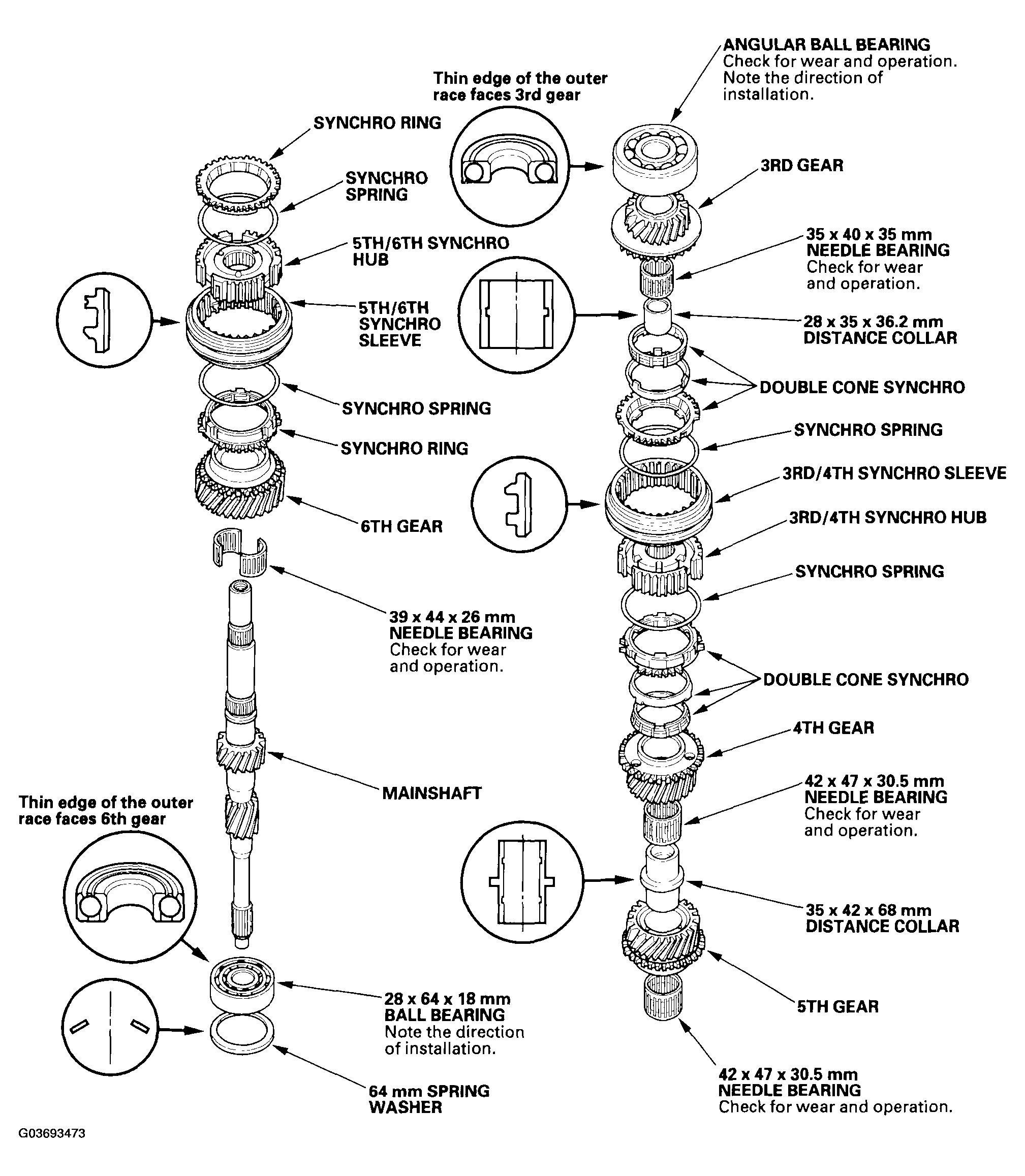

Fig 1: Exploded View Of Mainshaft (2000-2003 Models)

G03693473

Courtesy of AMERICAN HONDA MOTOR CO., INC.
