Circuit Diagram

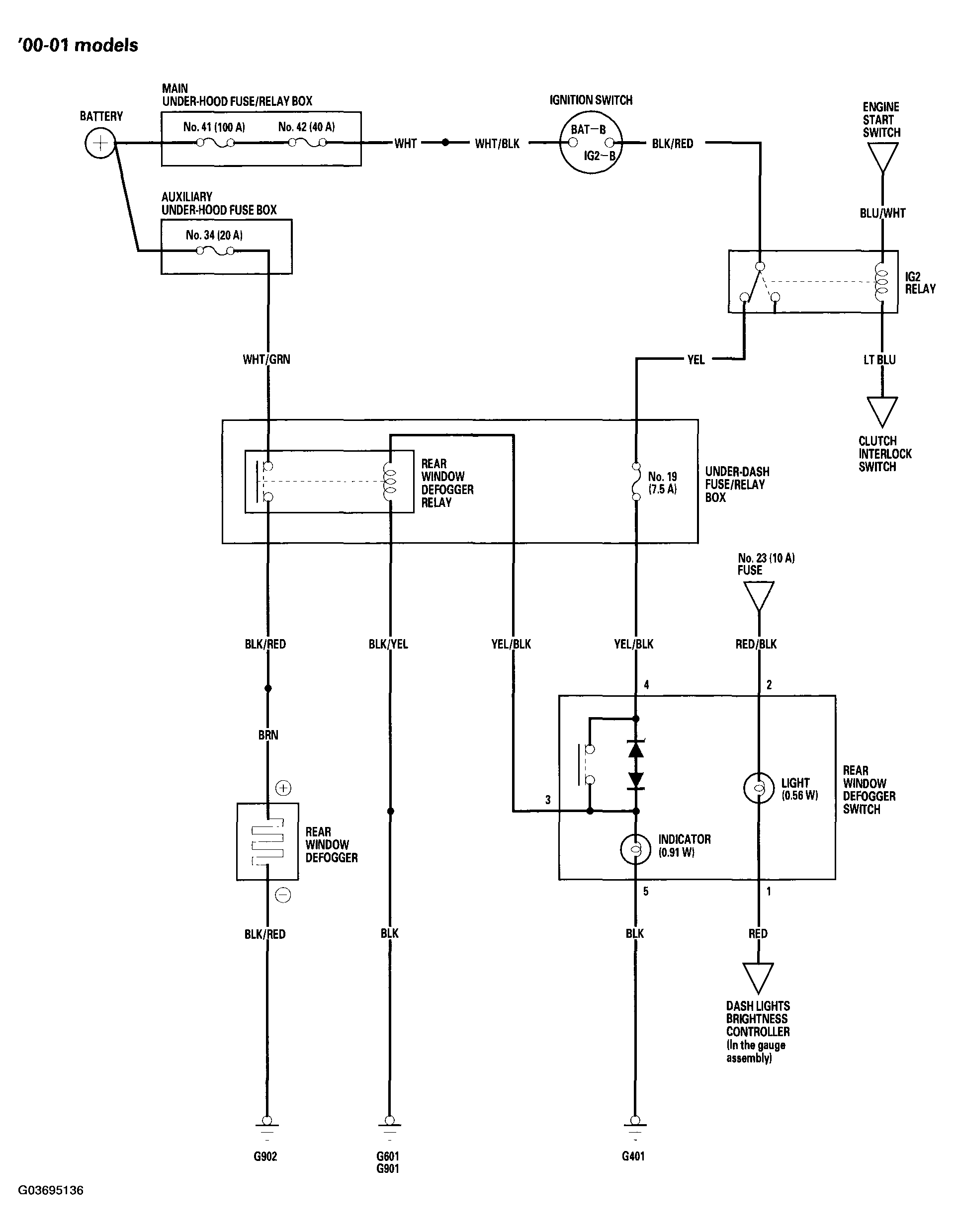

Fig 1: Identifying Circuit Diagram (2000-01 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

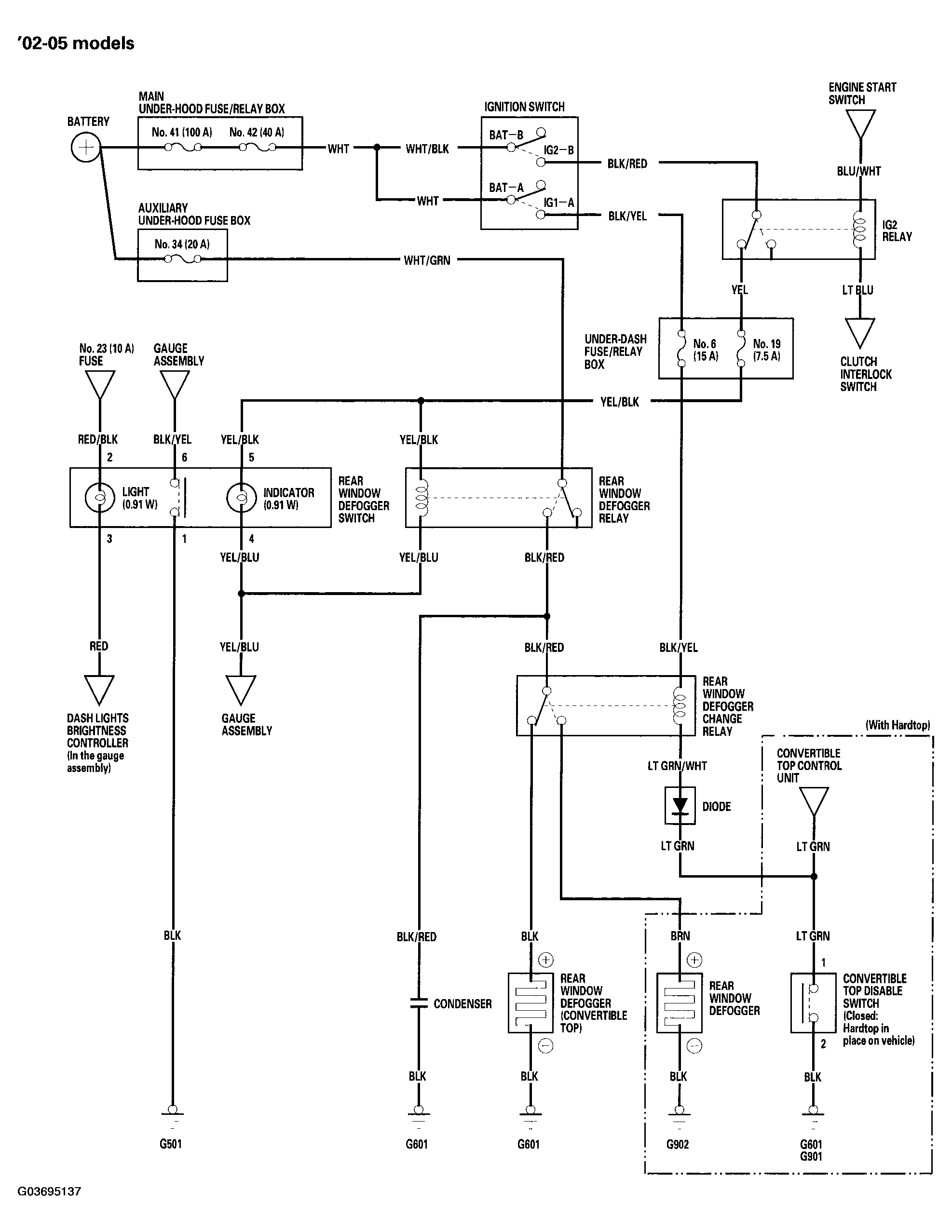

Fig 2: Identifying Circuit Diagram (2001-05 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

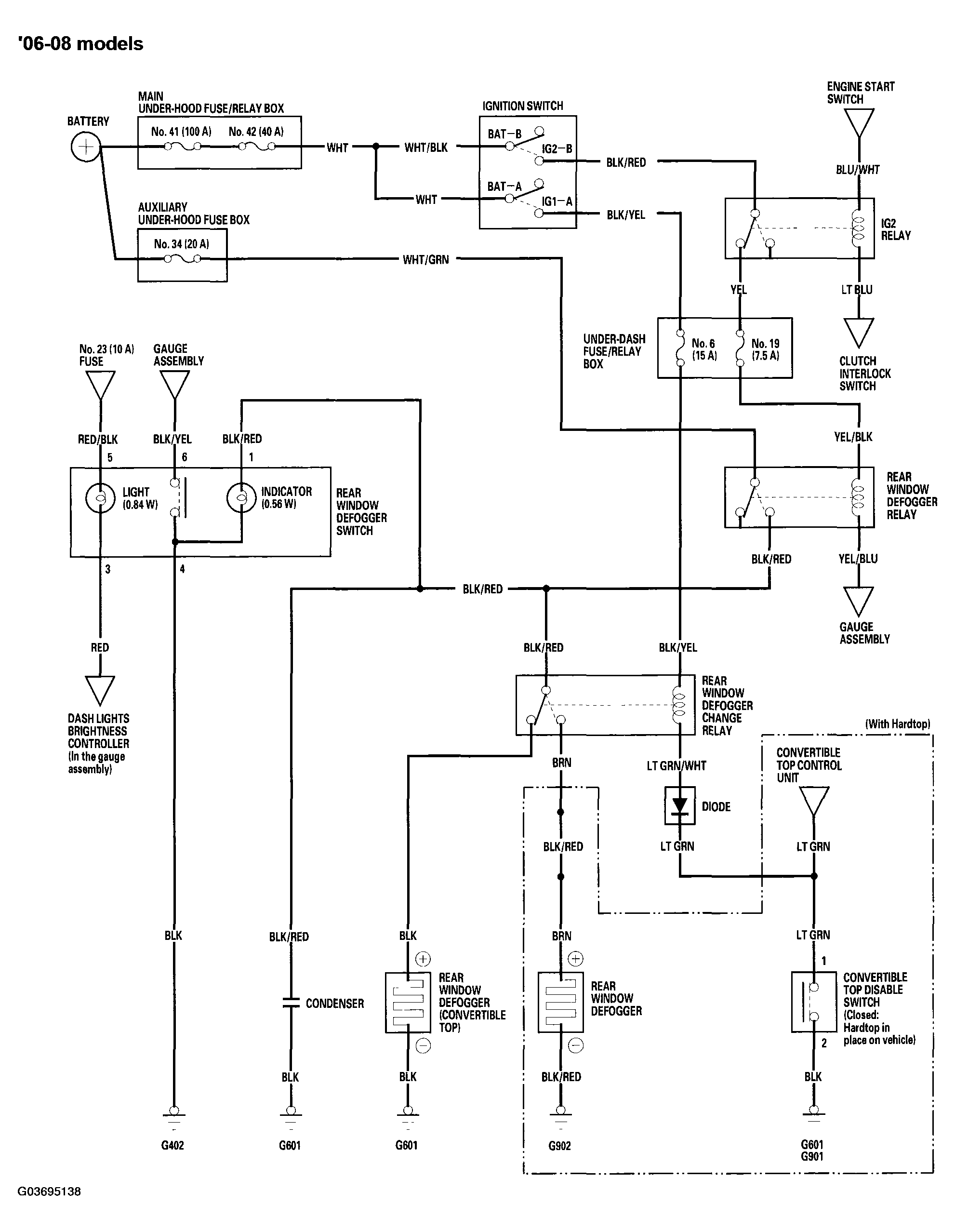

Fig 3: Identifying Circuit Diagram (2006-09 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
