Door Speaker Replacement

  1. Remove the door panel (see DOOR PANEL REMOVAL/INSTALLATION ).
  2. Remove the three mounting screws.

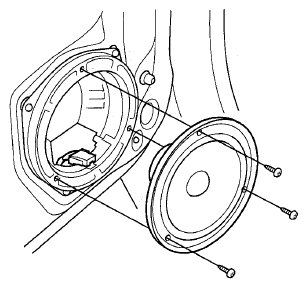

    Fig 1: Identifying Mounting Screws And Door Speaker
    G06232396Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 2P connector from the speaker.
  4. Install the speaker in the reverse order of removal.
