Radio Remote Switch Connector End View

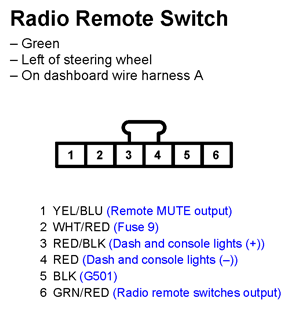

Fig 1: Radio Remote Switch Connector End View

G11250158

Courtesy of AMERICAN HONDA MOTOR CO., INC.
