Convertible Top Lock Handle Replacement

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 Honda S2000, 2007 Honda S2000, 2006 Honda S2000, 2005 Honda S2000, and 2004 Honda S2000. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to scratch the top frame.
  1. Remove the convertible top lock handle as shown below.
  2. Install the handle in the reverse order of removal, and apply multipurpose grease to the springs and moving parts.

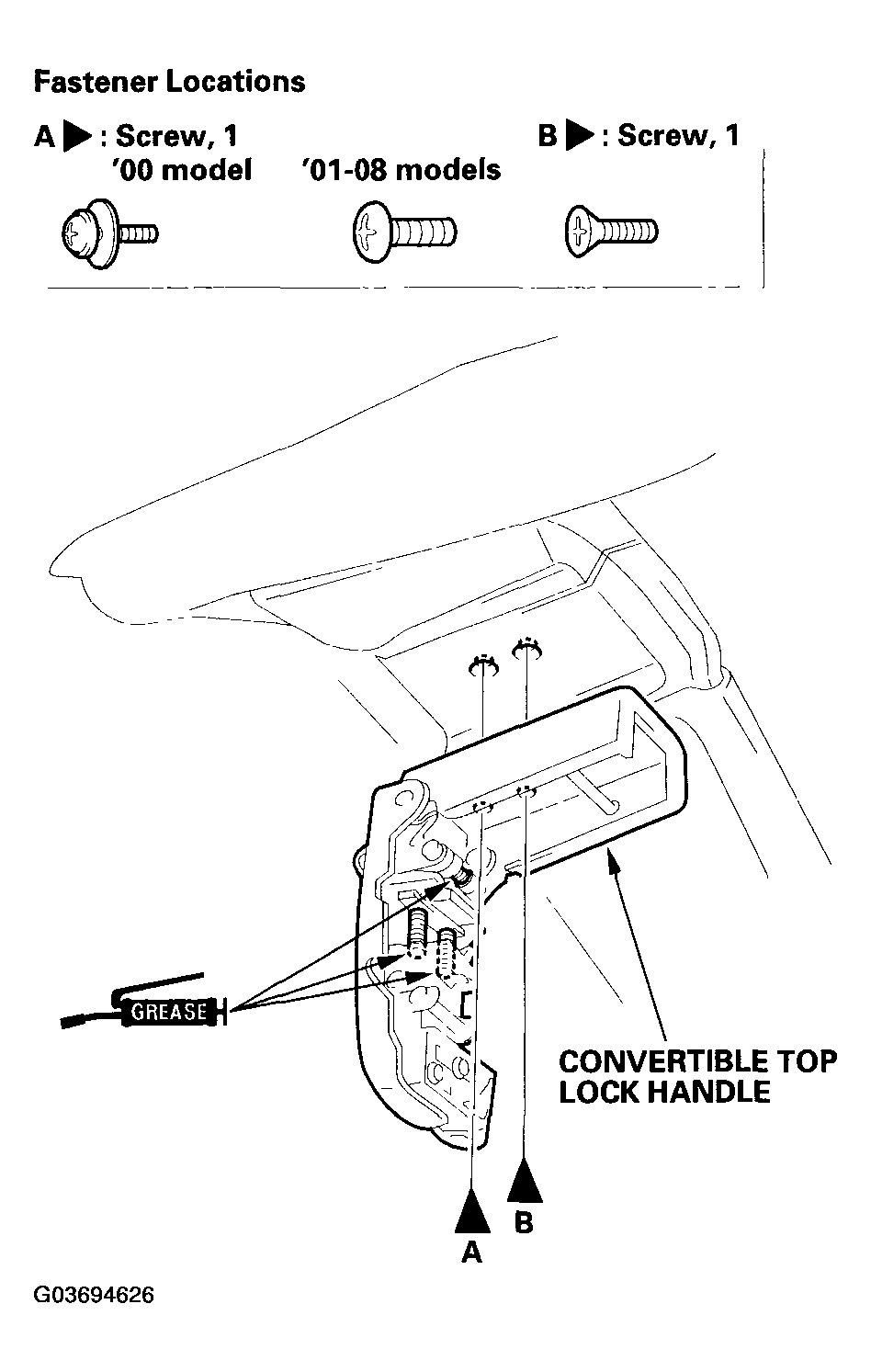

    Fig 1: Identifying Convertible Top Lock Handle
    G03694626Courtesy of AMERICAN HONDA MOTOR CO., INC.
