ECM Inputs and Outputs at Connector B (24P)

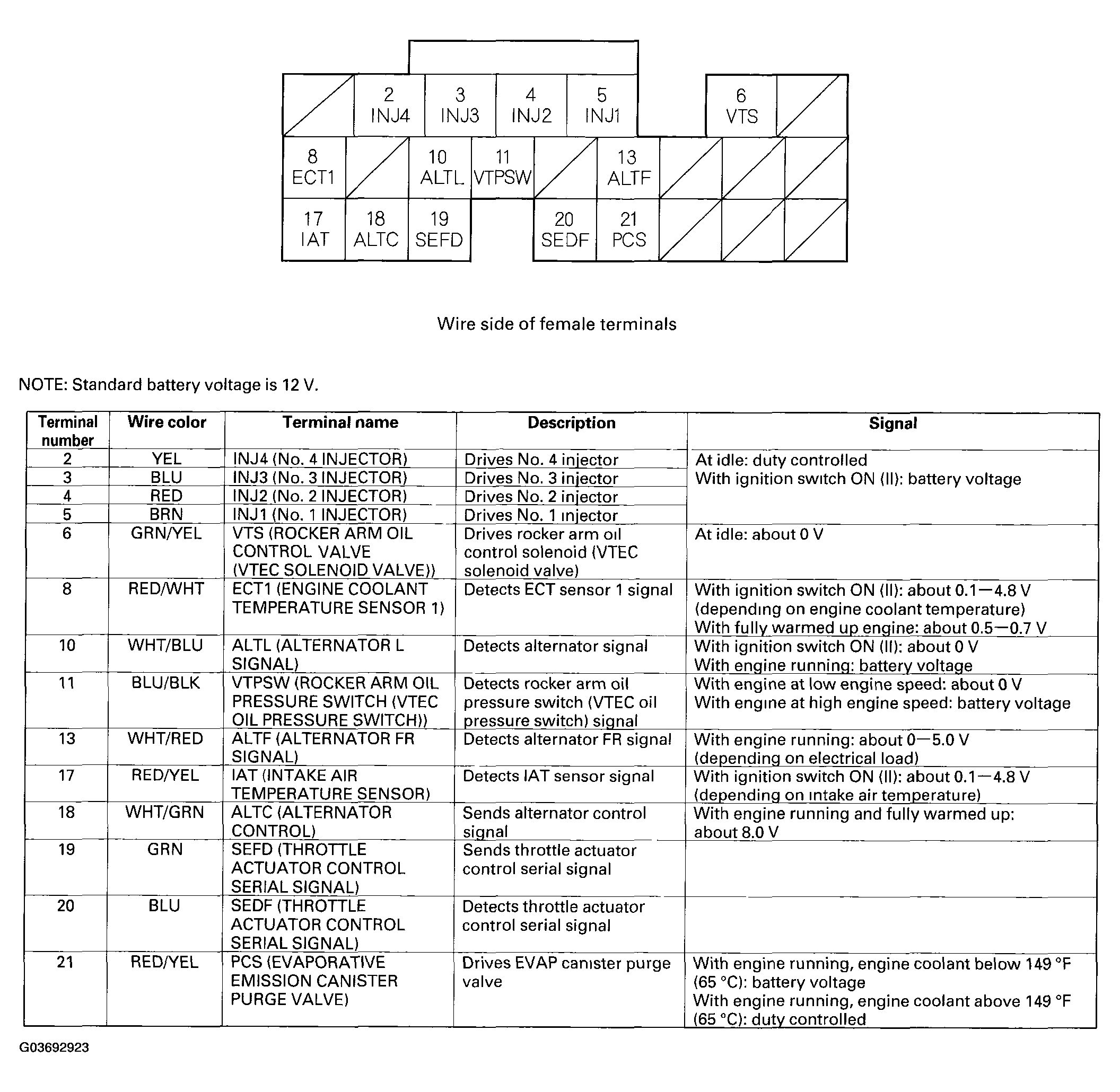

Fig 1: Identifying ECM Inputs And Outputs At Connector B (24P)

G03692923

Courtesy of AMERICAN HONDA MOTOR CO., INC.
