Home >> Honda >> 2009 >> S2000 Base >> Repair and Diagnosis >> Engine Mechanical >> Intake Manifold And Exhaust System >> Intake Manifold Removal and Installation >> 2000-2005 Models

2000-2005 Models

NOTE: Use new O-rings and gaskets when reassembling.

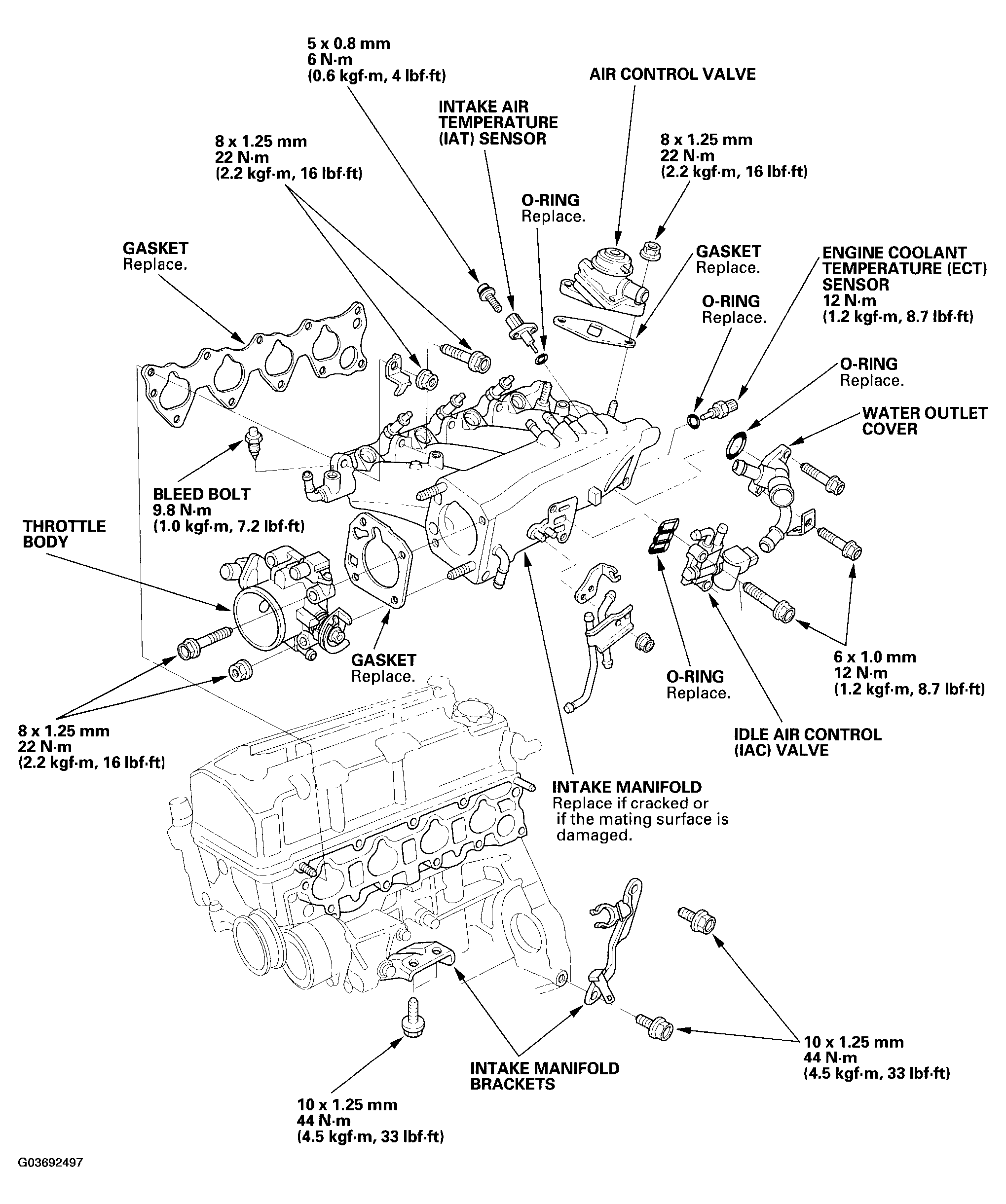

Fig 1: Identifying Intake Manifold Replacement Components - 2000-2005 Models With Torque Specifications
G03692497Courtesy of AMERICAN HONDA MOTOR CO., INC.
