Fan Motor Test

  1. Disconnect the 2P connectors from the radiator fan motor (A) and A/C condenser fan motor (B).

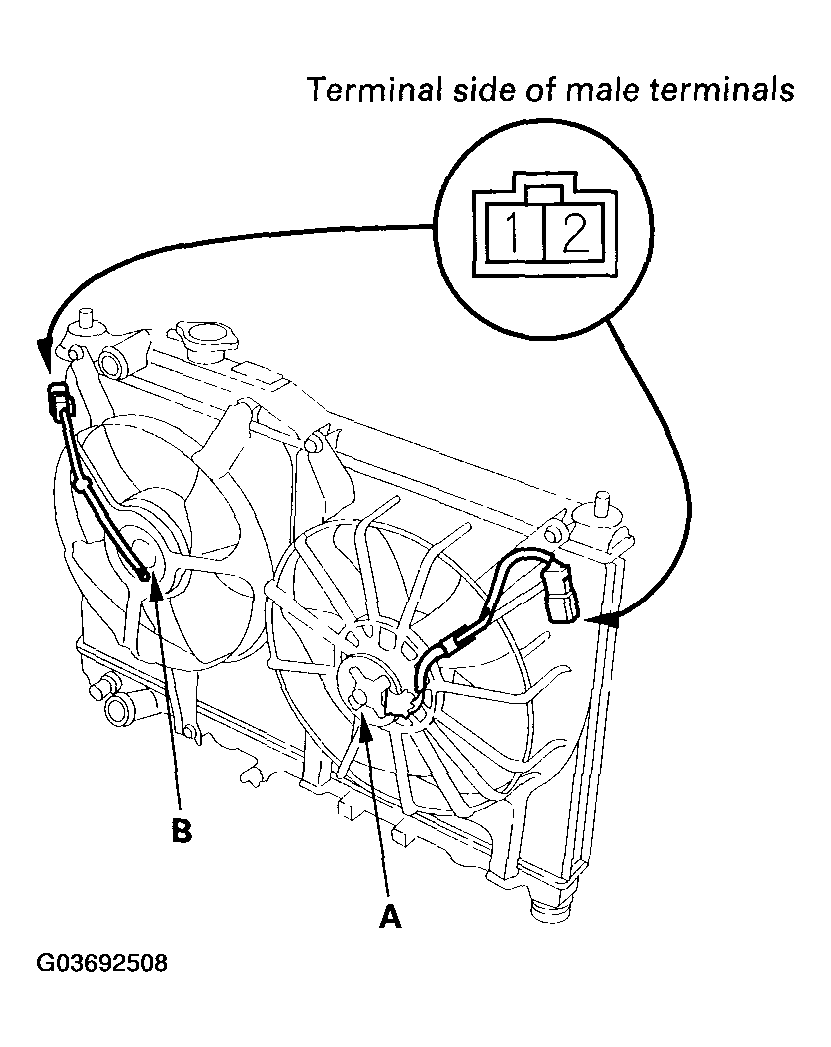

    Fig 1: Identifying 2P Connectors Of Radiator Fan Motor & A/C Condenser Fan Motor
    G03692508Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Test the motor by connecting battery power to the No. 2 terminal and ground to the No. 1 terminal.
  3. If either motor fails to run or does not run smoothly, replace it (see RADIATOR AND FAN REPLACEMENT  ).
