S2000 Base
>>
Repair and Diagnosis
>>
Body & Frame
>>
Sun Roof/T-Top/Convertible Top
>>
Power Convertible Top
>>
Circuit Diagram
Circuit Diagram

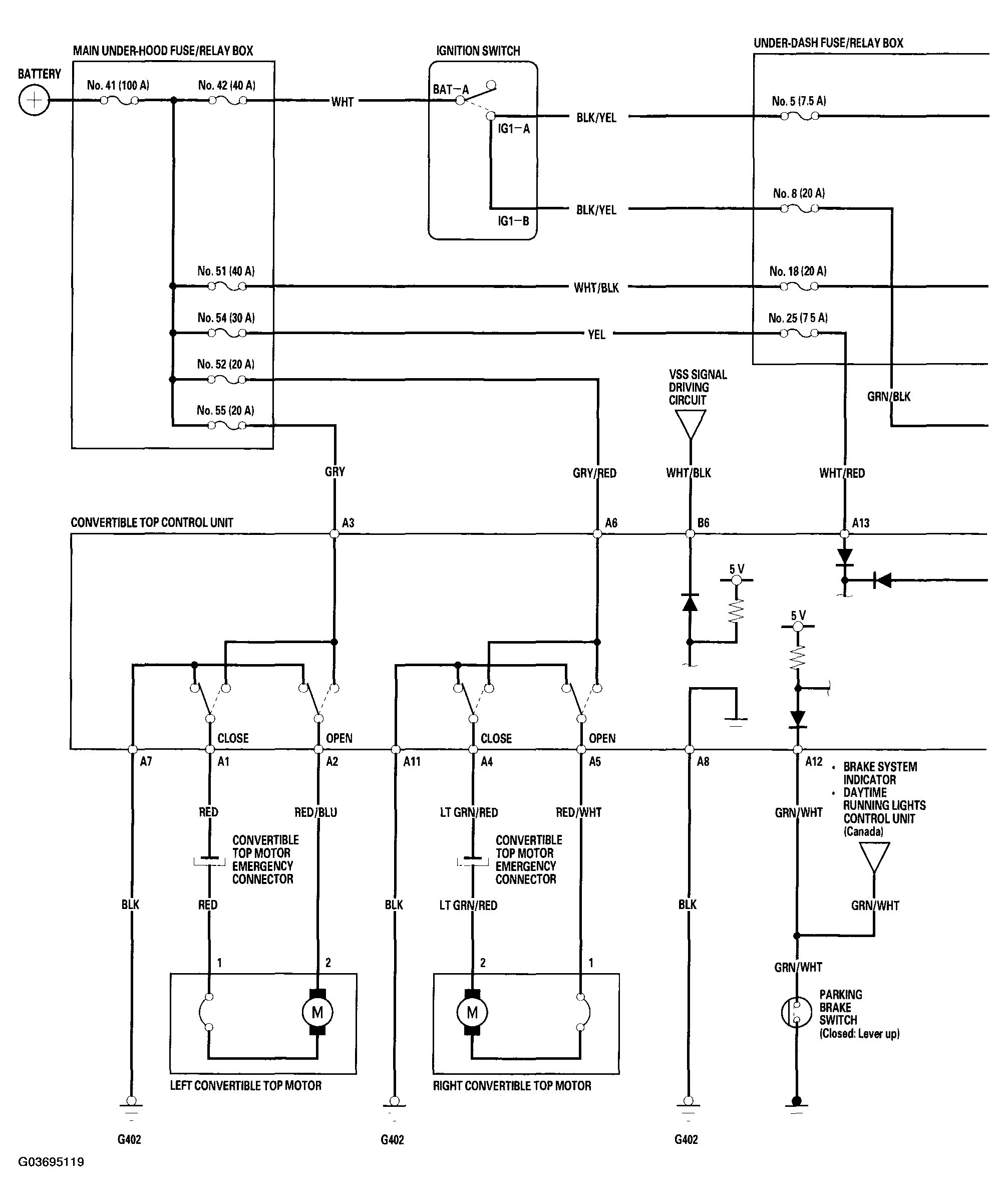

Fig 1: Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

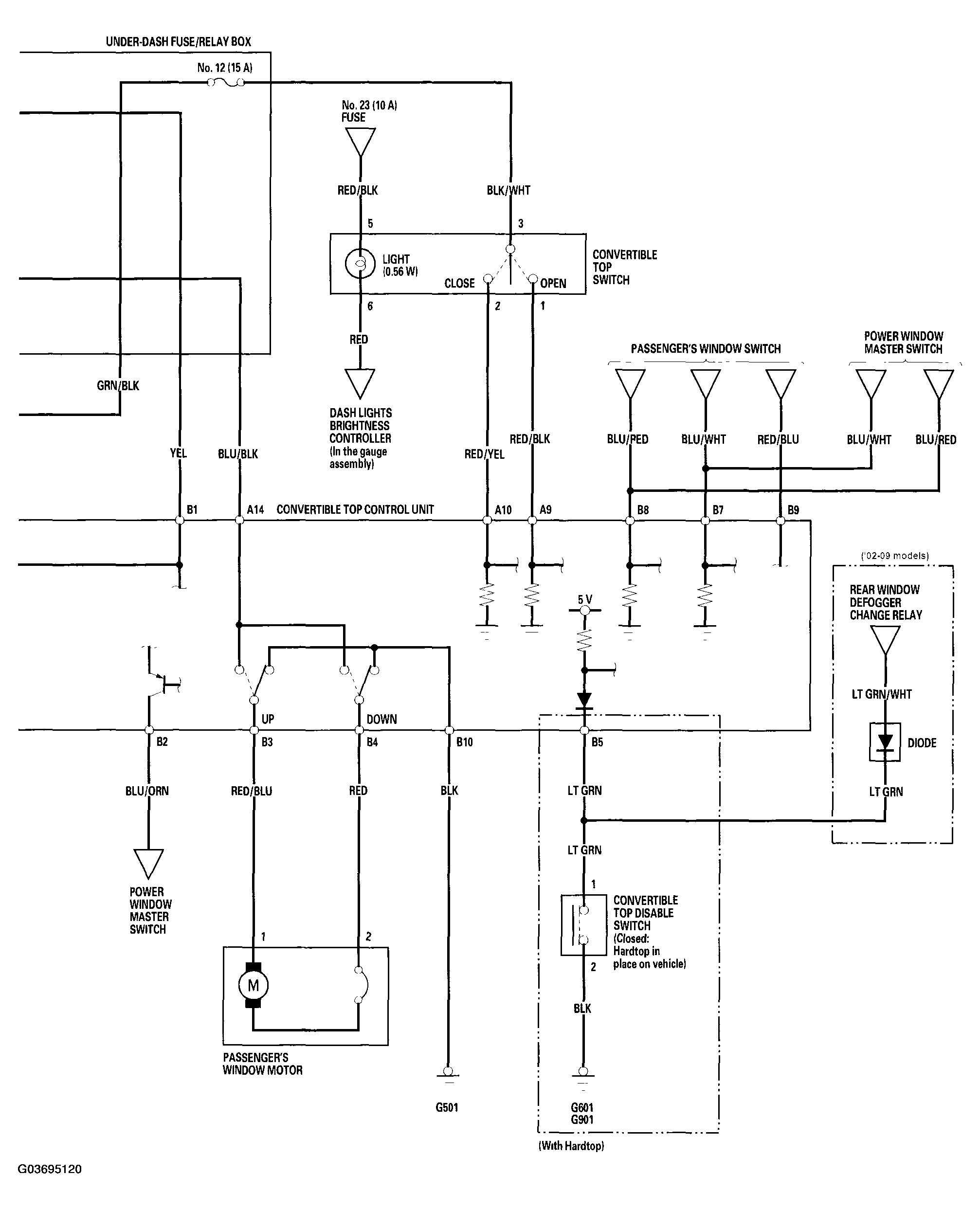

Fig 2: Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
